How to Improve UV Ink Adhesion with LED Curing Settings

Achieving bulletproof adhesion on difficult substrates is the "holy grail" of industrial inkjet printing. You likely already know that how to improve adhesion of UV ink with LED curing is rarely about changing just one setting; it is a delicate balance of physics, chemistry, and surface science.

If you are seeing ink flake off polypropylene or failing cross-hatch tape tests on glass, your LED curing parameters are often the primary culprit. Even the most expensive ink formulation will fail if the photon delivery—the actual UV energy hitting the substrate—is not optimized for the specific photoinitiators in that ink.

In this guide, we will dismantle the curing process. We will move beyond basic advice and dive into the specific wavelength adjustments, irradiance profiles, and energy density calculations that separate a permanent bond from a rejected batch.

What Factors Influence UV Ink Adhesion During Curing?

Adhesion relies on the successful cross-linking of photopolymers at the substrate interface, driven by three core factors: the matching of UV wavelength to ink photoinitiators, the total energy density (dose) delivered to the ink layer, and the surface energy (dyne level) of the material being printed on.

The "Trinity" of UV Adhesion

When I troubleshoot adhesion failures on a client's production line, I visualize adhesion as a three-legged stool. If one leg is short, the whole thing falls over.

1. Substrate Surface Energy (Wettability):Before we even talk about curing, the ink must "wet out." If you print on a low-energy plastic like HDPE (High-Density Polyethylene) without treatment, the ink beads up. The UV light freezes these beads in place, creating a weak mechanical bond.

Experience Note: I’ve seen operators crank up UV power to 100% trying to fix adhesion, only to find the issue was actually surface tension. If your substrate is below 38-40 dynes/cm, no amount of LED power will make the ink stick.

2. Ink Formulation & Photoinitiator Response:UV inks contain monomers, oligomers, and photoinitiators. The photoinitiators are the "trigger." They need a specific "key" (wavelength) to unlock. If your ink is designed for 395nm curing but your lamp is drifting or set incorrectly, the reaction never reaches the bottom of the ink layer (the interface), resulting in adhesion failure.
3. The Curing Parameter (The Focus of This Guide):This is where you have the most control. By manipulating the Irradiance (W/cm²) and Energy Density (J/cm²), you determine if the ink cures hard and brittle (often leading to flaking) or tough and flexible (better adhesion).

How Do LED Curing Settings Affect Adhesion?

LED curing settings directly control the depth of cure; high peak irradiance (intensity) drives UV energy through the ink film to bond with the substrate, while the total energy density (dose) ensures complete polymerization to prevent tackiness.

The Mechanics of "Through-Cure"

To improve adhesion, you must achieve what we call "through-cure."

In traditional mercury arc lamps, you had a broad spectrum of heat and light. UV LED is different—it is narrow and cool. This means you must be surgical with your settings.

• Surface Cure vs. Through Cure:
  • The Problem: If you have high adhesion failure (the ink peels off in a sheet), you likely have excellent surface cure but poor through cure. The top formed a skin, blocking UV light from reaching the bottom where the adhesion happens.
  • The Fix: You often need higher peak irradiance to punch through the pigments (especially dense colors like Black or White) to reach the substrate.

Irradiance vs. Dose: A Critical Distinction

Parameter	Unit	Metaphor	Effect on Adhesion
Irradiance (Intensity)	W/cm²	The brightness of the light.	Penetration power. High irradiance helps UV light reach the substrate interface.
Energy Density (Dose)	J/cm²	The amount of light accumulated over time.	Degree of cure. High dose ensures all chemical bonds are fully reacted.

Expert Tip: If you are running high-speed variable data printing, your "Dose" drops as speed increases. To maintain adhesion, you must increase Irradiance proportionally to the speed increase.

For a deeper dive into the specific mechanics of these parameters in drop-on-demand systems, refer to our guide on How UV LED Curing Works in Inkjet Printing.

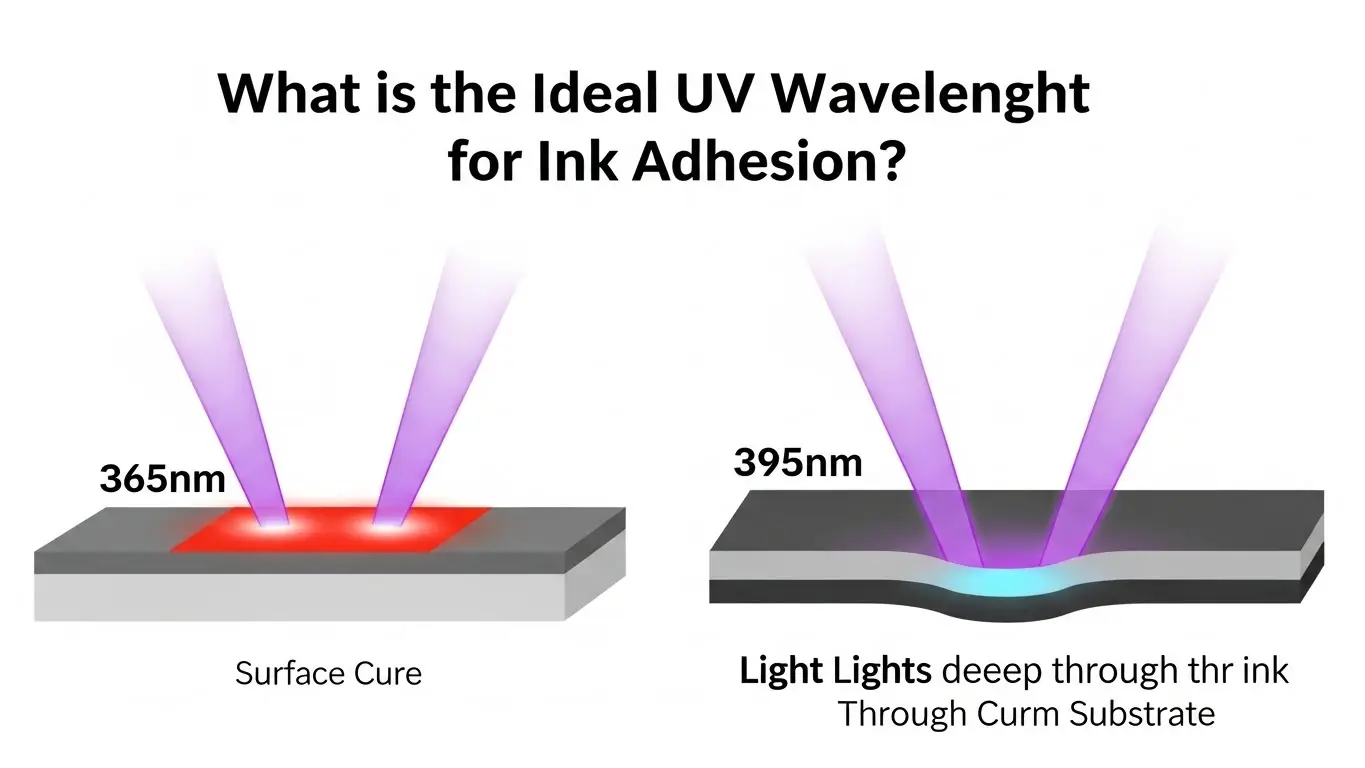

What is the Ideal UV Wavelength for Ink Adhesion?

The ideal wavelength for maximizing adhesion is typically 395nm because longer UV wavelengths penetrate deeper into the ink layer than shorter wavelengths (like 365nm), ensuring the UV energy reaches the substrate interface to create a strong mechanical and chemical bond.

Why 395nm is the Industrial Standard for Adhesion

If you look at the absorption spectrum of most industrial UV inkjet inks, you will see they are optimized for the UVA spectrum.

• 365nm (Short Wave): Great for clear coats and surface curing. It stops at the surface. If you rely solely on 365nm for thick, pigmented ink, you will get a "wrinkle" effect where the skin shrinks over wet ink.
• 395nm (Long Wave): This is the workhorse for adhesion. Its longer wave travels through the pigment/opacity of the ink.

Mixing Wavelengths for "Hybrid" Adhesion

Some advanced UV LED systems use a "dual-wavelength" approach.

1. Fire 395nm first: This penetrates deep and pins the ink to the substrate, establishing the bond.
2. Fire 365nm second: This seals the surface, removing tackiness.

If your current setup allows for mixed arrays, try biasing your power toward 395nm if adhesion is your primary failure point.

Can Over-Curing or Under-Curing Cause Adhesion Failure?

Yes, both extremes destroy adhesion; under-curing leaves the ink liquid at the interface causing it to wipe off, while over-curing causes the ink polymer to shrink and become brittle, creating internal stress that "pops" the ink off the substrate.

The "Goldilocks" Zone of Polymerization

It is a common myth that "more power = better adhesion." This is false.

The Dangers of Over-Curing (The Embrittlement Effect)

When UV ink polymerizes, it shrinks. If you blast a thin layer of ink with excessive energy (e.g., running 100% power at very slow speeds), the ink cures so instantly and violently that it shrinks away from the substrate.

• Symptom: The ink passes the thumb-twist test but fails the cross-hatch tape test. It chips off like hard candy.
• Solution: Lower the LED intensity to 70-80% and allow the photoinitiators to react slightly slower, reducing internal stress.

The Dangers of Under-Curing

• Symptom: The ink feels sticky or "greasy" on the bottom when peeled up.
• Solution: Check if your lamp usage has exceeded 20,000 hours (the typical lifespan of LEDs) or if the quartz window is dirty. Dust on the lamp window can reduce irradiance by 30%—enough to kill adhesion.

Choosing the right hardware is half the battle here. For insights on selecting a lamp that allows precise modulation, read about What UV LED Curing Lamp Is Best for Inkjet Printing?.

How to Optimize Print Speed for Better Adhesion?

Slowing down the print speed increases the "dwell time" (exposure time) of the ink under the UV light, significantly increasing the total energy dose delivered, which improves the cross-linking density and chemical bonding to the substrate.

The Speed vs. Power Ratio

When you increase your conveyor or printhead carriage speed, you are effectively "robbing" the ink of light.

Scenario: You are printing on acrylic at 1 m/s and adhesion is perfect. You rush the job and speed up to 1.5 m/s. Suddenly, the ink is flaking.

Why: You reduced the Energy Density (Dose) by 33%.

The Fix:

1. Linear scaling: If you increase speed by 50%, increase UV power by 50% (if you have the headroom).
2. Double Pass: If you are maxed out on power, run a "blank" curing pass (printing nothing, just curing) to add an extra dose of energy.

Why is Surface Pre-Treatment Necessary for Some Substrates?

Low surface energy materials like Polypropylene (PP) and Polyethylene (PE) are chemically inert and non-porous; pre-treatment methods like Corona, Plasma, or chemical primers increase the surface dyne level to allow the UV ink to wet out and bond physically.

When LED Settings Aren't Enough

Sometimes, no amount of LED tweaking will solve the problem. Adhesion is chemical.

• Glass & Metal: These are notoriously difficult. The surface is smooth and non-porous. You almost always need a chemical adhesion promoter (primer).Pro Tip: Use a digital primer jetted through the printhead if possible. This ensures the primer is only where the ink is, preserving the gloss of the unprinted glass.
• Plastics (PP/PE/PET): You need to disrupt the surface molecularly.
  • Corona Treatment: Uses high-voltage discharge to oxidize the surface.
  • Flame Treatment: A literal flame passed over the object (common in bottle printing) to burn off contaminants and raise surface energy.

How to Troubleshoot Common Adhesion Issues?

Troubleshooting starts with verifying the substrate's surface energy (dyne pen test), followed by checking the UV lamp's output with a radiometer to ensure consistent irradiance, and finally performing standardized adhesion tests (ASTM D3359) to isolate the failure mode.

The "Cure & bond" Troubleshooting Checklist

If you are facing a crisis on the production floor, follow this hierarchy:

1. The Dyne Test:Use a dyne pen (e.g., 38 dyne). Swipe it on the material. If the ink beads up within 2 seconds, your surface energy is too low. Stop printing. Clean the substrate with Isopropyl Alcohol (IPA) or apply primer.
2. The Window Check:Look at the glass quartz window of your UV LED lamp. Is there mist? Ink splatter? Dust?Real-world scenario: I once solved a "mysterious" adhesion failure by wiping a thin layer of vaporized varnish off the LED window. Power output jumped back up by 15%.
3. The Smear Test:Rub the print with your thumb immediately after curing. If it smears, it is under-cured. You need more power or slower speed. If it doesn't smear but flakes off later, it is an interface failure (surface tension or over-curing).Further Reading: For specific steps on preventing wet ink issues, check out How to Prevent UV Ink Smearing with Proper LED Curing.
4. The Cross-Hatch Test (ASTM D3359):Use a razor to cut a # pattern into the ink. Apply pressure-sensitive tape (like 3M 600) and rip it off at 180 degrees.
   • 5B (0% removal): Perfect.
   • 0B (Greater than 65% removal): Total failure.

Advanced: The "Pinning" Technique

If you are using a scanning printer (where the head moves back and forth), you can use LED Pinning.

• Low Power cure (Pinning): Freeze the dot shape immediately so it doesn't bleed.
• High Power cure (Final): Solidify the bond.

Adjusting the ratio between these two can drastically improve adhesion on difficult, slippery substrates.

Conclusion

Mastering how to improve adhesion of UV ink with LED curing requires you to stop looking at the printer as a "black box." It is a chemical reactor.

You must align the wavelength (typically 395nm for adhesion) with your ink's chemistry. You must balance irradiance to penetrate the ink layer without over-curing effectively causing the ink to shatter. And, you must respect the substrate's need for surface energy preparation.

By systematically adjusting your print speed, maintaining your LED lamps, and utilizing the right pre-treatments, you can turn adhesion from a daily headache into a predictable, repeatable science.

For a comprehensive breakdown of the entire ecosystem of LED technology, refer to our full UV LED Ink Curing Guide.

Frequently Asked Questions (FAQ)

Can I just increase the UV lamp power to 100% to fix adhesion?

Not always. While higher power increases the dose, it can also cause "thermal shock" or shrinkage in the ink film, leading to brittleness and flaking. It is often better to optimize the specific wavelength or slow down the print speed.

Why does my ink stick to white plastic but not black plastic?

Black plastic often contains carbon black, which can absorb UV light, reducing the reflection back into the ink. Additionally, black plastics may have different mold release agents (oils) on the surface. Always clean and surface-treat black substrates more aggressively.

How do I know if my UV LED lamp is dying?

Unlike mercury lamps that flicker, LEDs just get dimmer. You cannot see this with the naked eye. You must use a UV Radiometer specifically calibrated for LED (395nm) to measure the output (W/cm²) regularly.
