Offset Printing UV LED Curing System: Integration Options

Integrating an offset printing UV LED curing system typically involves installing high-intensity LED arrays either at the end-of-press (EOP) or between print units (interdeck). This technology replaces traditional hot-air or mercury UV dryers, allowing for the instant curing of inks on both standard paper and heat-sensitive synthetic substrates. For most print shops, integration comes in two primary forms: retrofitting an existing sheetfed press with modular LED lamp heads or specifying a new press with a pre-installed OEM system. The core advantage lies in the "cool cure"; because LED UV emits specific wavelengths (typically 385nm or 395nm) without the intense infrared heat of conventional lamps, you can eliminate spray powder, reduce energy consumption by up to 70%, and move finishing processes immediately to the bindery.

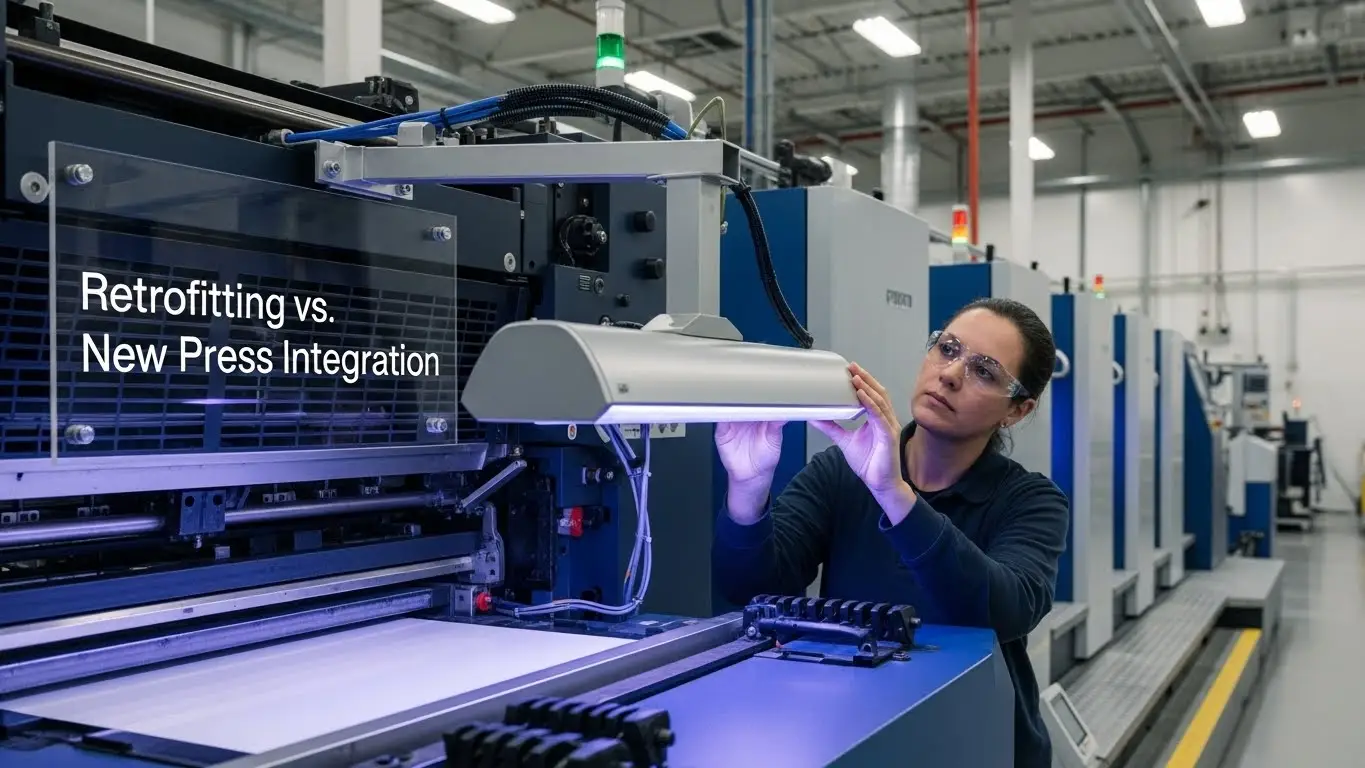

Retrofitting vs. New Press Integration

When considering an upgrade to UV LED, the first decision is usually whether to upgrade your current machinery or invest in new capital equipment. Both paths utilize similar LED technology, but the integration process differs.

Retrofitting Existing Presses

Retrofitting is a popular choice for extending the life of reliable iron. An offset printing UV LED curing system is compact enough to fit into the delivery or interdeck spaces of most standard presses (like Heidelberg, Komori, or Manroland) without major mechanical overhauls.

• Pros: Lower initial capital investment; leverages existing press foundation.
• Cons: Requires downtime for installation; may require updating rollers and blankets to be UV-compatible.

OEM Integration

Buying a new press with factory-integrated LED UV ensures seamless communication between the press console and the curing system. The cooling lines, power supply, and safety interlocks are built into the press design from day one.

Note: Whether retrofitting or buying new, correct system sizing is critical. For a guide on sizing and specifications, read our article onHow to Choose LED UV Curing for Offset Printing.

Can you use UV ink in a regular offset press?

Yes, but you cannot simply put UV ink into a standard press without modification; you must install a curing light source and ensure your rollers are chemically compatible.

Standard offset inks dry by absorption and oxidation, a slow process taking hours or days. UV inks do not dry—they "cure" (polymerize) instantly when exposed to UV light. To run these inks on a regular press, you must install an LED UV curing system. Additionally, the chemistry of UV inks is aggressive. Standard rubber rollers and blankets may swell or degrade if used with UV monomers. Therefore, converting a "regular" press usually involves replacing the roller train with EPDM or mixed-mode rubber compounds that resist the harsh solvents in UV chemistry.

What is the difference between UV and LED UV offset printing?

The main difference is the light source and wavelength: Traditional UV uses mercury bulbs emitting a broad spectrum of light and high heat, while LED UV uses diodes emitting a narrow, cool spectrum.

Traditional mercury arc lamps produce a "broadband" output, blasting the sheet with everything from UV-C to Infrared (IR). While this cures ink, it also generates massive amounts of heat (up to 800°F at the bulb) and ozone, requiring heavy extraction ducting.

In contrast, an offset printing UV LED curing system emits a monochromatic output (usually centered at 385nm or 395nm). This energy is focused entirely on curing the ink, not heating the room or the substrate.

Comparison: Mercury UV vs. LED UV

How does UV LED curing work in offset?

UV LED curing works by blasting photoinitiators in the ink with high-intensity UV energy, causing an instant chain reaction that turns liquid ink into a solid plastic-like film.

In an offset environment, this happens in a fraction of a second as the sheet passes under the lamp array. Because the ink solidifies instantly, "dry-back" (color shifting as ink dries) is eliminated. The printed sheet arrives in the delivery pile completely dry.

To achieve this, the ink formulation must match the lamp's output. Since LED lamps don't emit the short-wave UV-C that cures the surface of standard UV inks, you must use formulations specifically "doped" to react to UV-A wavelengths (385-395nm). For a deeper dive on material selection, check our guide on What Inks Are Compatible with LED UV Offset Curing?.

Optimizing Lamp Positioning: Interdeck vs. EOP

The physical placement of the lamps affects your print capabilities, especially for complex jobs involving white ink or heavy coverage.

End of Press (EOP)

The most common configuration is placing the curing bar at the delivery end of the press, just before the sheet is stacked.

• Function: Cures all colors (CMYK) simultaneously.
• Best For: Standard 4-color commercial work.

Interdeck Curing

Interdeck lamps are movable units placed between print towers (e.g., after the cyan unit or after opaque white).

• Function: "Pins" or sets the ink before the next color is laid down.
• Best For: Printing on plastic (to prevent dot gain), trapping heavy ink coverage, or printing opaque white on foil.

Once your lamps are positioned, the physical distance to the substrate is vital. If the lamp is too far, the energy density (dose) drops, leading to tackiness. For best practices on gap settings and power levels, refer to our Sheetfed LED UV Curing Setup Tips for Consistent Cure.

Frequently Asked Questions

Do I need to replace my rollers to switch to LED UV?

Generally, yes. Traditional oil-based rollers may swell when exposed to UV ink monomers. You should switch to EPDM or "combi" rollers designed to handle both conventional and UV inks if you plan to switch back and forth.

Is LED UV printing more expensive than conventional offset?

The inks are more expensive per pound, but the overall production cost is often lower. You save money by eliminating spray powder, reducing energy bills, cutting paper waste/spoilage, and removing the need for protective aqueous coatings for dry time.

Can I retrofit a very old press?

Yes, as long as there is physical space to mount the lamp heads (usually requires 10-15 inches of clearance in the delivery). However, the press condition matters; high-speed curing requires stable registration.

What is the lifespan of an LED UV lamp?

LED arrays typically last over 20,000 hours of "on" time. Since they turn off instantly between sheets or when the press stops, this can translate to 5-10 years of production life, compared to 1,000 hours for mercury bulbs.

Does LED UV require exhaust ducting?

No. LED UV does not produce ozone, so you do not need the expensive and bulky roof extraction ducting required for traditional mercury UV systems.

Key Takeaways

• Integration Flexibility: You can retrofit existing offset presses or buy new OEM systems; both utilize similar LED technology.
• Instant Drying: LED UV cures ink instantly, allowing sheets to go straight to the bindery without spray powder or drying time.
• Heat Reduction: The "cool cure" enables printing on heat-sensitive plastics and foils without distortion.
• Energy Savings: Expect 50-70% energy reduction compared to traditional mercury UV or hot air dryers.

Conclusion

Switching to an offset printing UV LED curing system is one of the most impactful upgrades a commercial printer can make. It transforms a traditional press into a hybrid machine capable of printing on plastics, foil, and uncoated stocks with higher vibrancy and speed. Whether you choose to retrofit or buy new, the removal of heat, ozone, and waiting time creates a more profitable and efficient pressroom.

Ready to upgrade your press? Evaluate your current roller train and power capacity, then consult with a specialist to determine if an EOP-only or Interdeck configuration best suits your product mix.
