UV LED Headlamp UVH50
- Model: UVH50
- Various Sizes

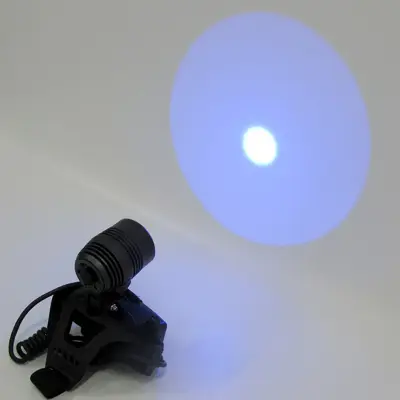

The UVET UVH50 and UVH100 are compact, hands-free UV-A LED headlights with adjustable angles and a secure fit for helmets or heads. A rear battery design eliminates loose cables, while a back-mounted switch prevents accidental activation. The 365nm UV LED with a unique filter ensures high UV transmittance. Powered by a 3400mAh Li-ion battery, it provides up to 5 hours of use, with an extra battery included.
Specifications
| Part No. | UVH50 |
| Peak Intensity @380mm distance | 40,000µW/cm² |
| UV Beam Size @380mm distance | Φ40mm |
| Wavelength | 365nm |
| Power Supply | 1x rechargeable Li-ion battery |
| Running Time | Around 5 hours |
| Weight | 238g (with battery) |
-
Descriptions
- The UVET UVH50 and UVH100 are small-sized, lightweight, UV-A LED Headlights designed to release the test engineer’s hands during inspection.
- The headlights can be adjusted in different angles, the operator can switch angle of the light during inspection.
- The rubber bands are adjustable and designed to fit helmets, or to be attached directly on the head.
- The battery is located in the back of the structure and therefore there are no loose cables hanging from the lamp.
- The on/off button is positioned in the back of the lamp to prevent accidental activation.
- The headlight is equipped with a unique filter glass to minimize the visible light and increase the UV light transmittance. The emitter is one 365nm UV LED. Full power is reached instantly.

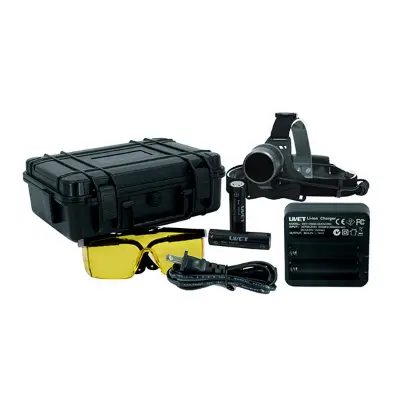

- The power supply is one 3400mAh Li-ion battery. A full charge battery provides up to 5 hours of use. Recharge from a normal outlet. The kit also includes an extra rechargeable Li-ion battery.
