Sheetfed LED UV Curing Setup Tips for Consistent Cure

Sheetfed LED UV curing setup tips often determine the difference between a flawless print run and costly downtime. Achieving a consistent cure requires precise alignment of lamp irradiance, wavelength compatibility, and thermal management within your offset press workflow. By mastering these setup variables, you prevent common issues like ink setoff, adhesion failure, and "mushy" curing on high-speed runs.

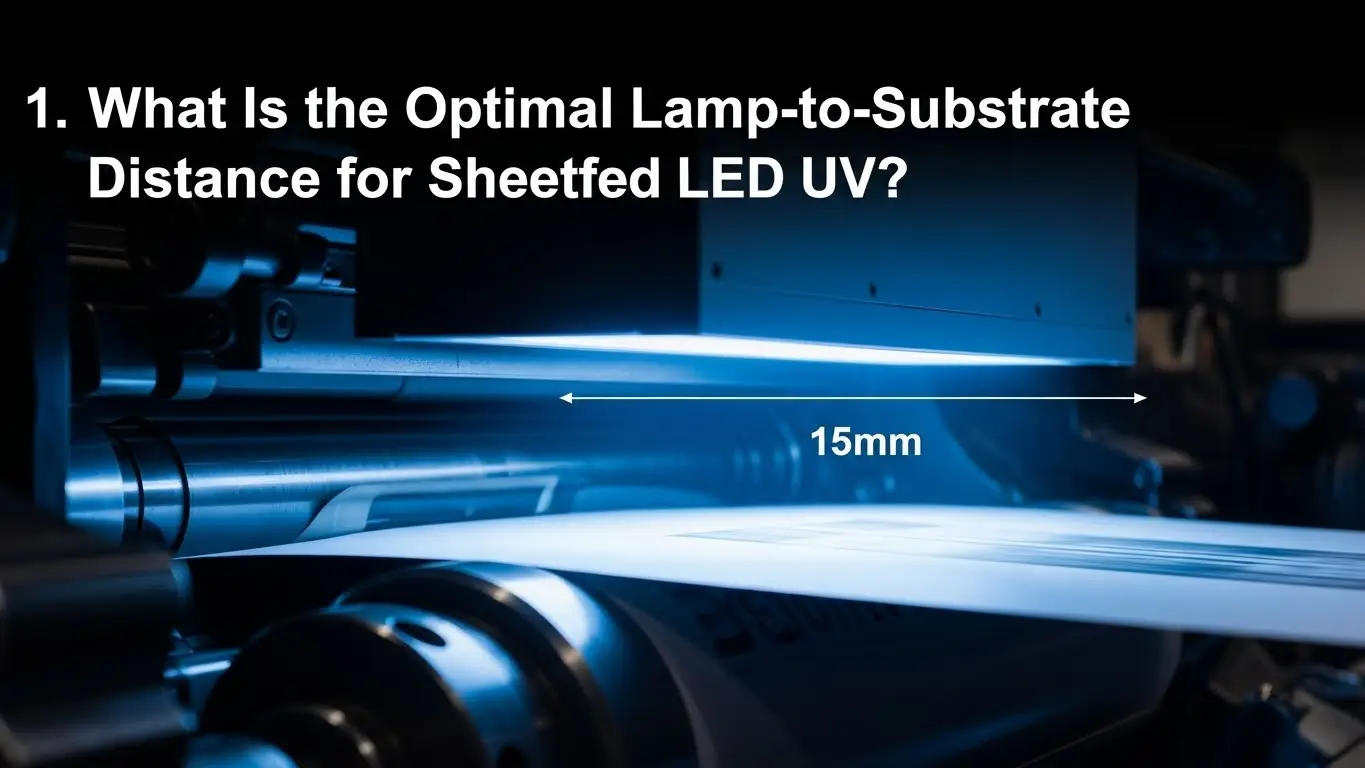

What Is the Optimal Lamp-to-Substrate Distance for Sheetfed LED UV?

For consistent curing, the optimal distance between the LED UV lamp emission window and the sheetfed substrate is typically 10mm to 20mm. Increasing this gap significantly reduces peak irradiance due to light divergence. Always set the gap as close as mechanically safe to maximize energy transfer and ensure deep through-cure.

Mastering the Gap: Why Distance Is Critical

In sheetfed offset printing, the "air gap" is a variable that is often overlooked during installation, yet it is the single biggest physical factor affecting cure quality. LED UV energy follows the inverse square law—meaning if you double the distance from the sheet, you receive only one-quarter of the energy.

To maintain a consistent cure, follow these setup protocols:

Mechanical Safety vs. Irradiance: While closer is better for energy density, sheet flutter in high-speed offset presses (running 15,000+ sheets per hour) poses a risk. A gap of 15mm is often the "sweet spot" that balances safety with high peak irradiance.
Gripper Bar Clearance: Ensure your setup accounts for gripper bar height. If the lamp is positioned too low, you risk catastrophic mechanical damage; too high, and you suffer from surface tackiness.
Uniformity Checks: Use a radiometer strip across the cylinder width during setup. A variance of more than 10% from operator side to gear side indicates that the lamp array is not parallel to the impression cylinder.

How Do You Match LED Wavelengths to Offset Ink Formulations?

You must match the LED lamp's peak wavelength (typically 385nm or 395nm) to the specific photoinitiators in your offset ink. A mismatch results in weak polymerization, where the ink may feel dry to the touch but fails tape adhesion tests. Consult your ink supplier to confirm the required nanometer output.

The Science of Spectral Sensitivity

Unlike mercury vapor lamps that emit a broad spectrum of chaos, LED UV is monochromatic. This precision is its strength, but also a potential pitfall if your setup is mismatched.

365nm vs. 385nm/395nm:
- 395nm: The standard for most sheetfed offset curing. It offers excellent penetration for thick ink layers and darker colors (like Black and dense Blues) because longer wavelengths penetrate deeper.
- 385nm: Often used for clear coatings or specific white inks where surface cure is critical to prevent yellowing.
- 365nm: Rare in standard offset, usually reserved for specialized adhesives or electronic applications.
The "Surface Cure" Trap: If your ink is designed for 395nm but you are running a 365nm lamp (or vice versa), you may experience "oxygen inhibition." This leaves the surface tacky while the bottom layer cures, or the reverse—a hard shell with liquid ink underneath.

Pro Tip: When auditing your setup, check if your ink supplier has recently reformulated. A change in photoinitiator packages without a corresponding adjustment in your lamp selection is a frequent cause of sudden adhesion failures.

Why Is Thermal Management Essential for Consistent LED Output?

Effective cooling is mandatory because LED junction temperature directly impacts UV output intensity. If the LED array overheats, UV irradiance drops, leading to inconsistent curing across long print runs. Ensure your water-cooling chillers or air-cooling fans are active and maintaining the manufacturer’s specified operating temperature (usually < 40°C).

Preventing "Thermal Droop" in Long Runs

A common misconception is that "LEDs run cool." While they don't emit infrared heat onto the substrate, the electronics themselves generate significant heat. If this heat isn't managed, you encounter "thermal droop"—a phenomenon where the UV output creates a fading curve over the duration of a shift.

Setup Checklist for Thermal Stability:

Chiller Capacity: For water-cooled systems, ensure the chiller capacity exceeds the thermal load of the lamps by at least 20%.
Flow Rate Monitoring: Install flow sensors. A kink in a hose or a failing pump can cause a "hot spot" on the LED array, permanently damaging the diodes and leaving streaks of uncured ink on your sheets.
Air Filter Maintenance: For air-cooled units, paper dust is the enemy. Clogged filters reduce airflow, causing the lamps to throttle down their power automatically to protect the circuitry.

Can Improper Power Settings Cause Ink Setoff?

Yes, both under-curing and over-curing can lead to setoff and stacking issues. Under-curing leaves wet ink that transfers to the back of the next sheet. Surprisingly, over-curing can cause "embrittlement," where ink flakes off during finishing. Calibrate power settings based on press speed; use "speed-following" modes to automatically adjust intensity.

Tuning Power for Speed and Coverage

Modern LED UV systems often feature "speed smoothing" or "linear power adjustment." This means the lamp intensity ramps up and down in sync with the press speed.

Press Speed (SPH)	Recommended Power %	Potential Issue if Incorrect
Make-ready / Jog	5% - 10%	Overheating substrate if too high.
5,000 - 8,000	40% - 60%	Incomplete cure if too low.
10,000 - 15,000	80% - 90%	Setoff in pile if too low.
16,000+	100%	Lack of deep cure if dwell time is too short.

Troubleshooting Setoff:

If you are experiencing ink transfer despite high power settings, the issue might not be power—it might be saturation. A common question we encounter is: Does LED UV Curing Reduce Setoff in Offset Printing? The answer lies in the instant polymerization capability of LED, provided the "dose" (Energy Density) is sufficient to overcome the oxygen inhibition layer immediately upon exit.

How Often Should You Clean Quartz Windows for Maximum Output?

Clean the quartz emission windows at the start of every shift and immediately after any paper jam. Even a thin layer of paper dust or ink mist can block up to 30% of UV energy. Use a lint-free cloth and isopropyl alcohol to ensure 100% transmission transparency.

The "Invisible" Barrier to Cure

In a sheetfed environment, anti-setoff powder (if used in hybrid setups) and paper dust are omnipresent. These contaminants bake onto the quartz window of the LED lamp. Unlike mercury lamps, which burn off debris with immense heat, LED lamps run cooler, allowing contaminants to accumulate rapidly.

Maintenance Protocol:

Daily: Visual inspection and alcohol wipe.
Weekly: Inspect the module for "dark diodes." If a segment of LEDs has failed, you will see a corresponding uncured stripe on your print.
Monthly: Radiometer audit. Measure the output (Watts/cm²) and Energy Density (Joules/cm²) to track degradation.

Note: We have seen presses lose 20% of their curing power simply because the operator didn't wipe the lens after a particularly dusty uncoated paper run. This simple step is the first line of defense in quality control.

Is Your Water-Ink Balance Affecting the Cure?

Excessive emulsification of water in the ink hinders UV penetration and delays curing. Because LED UV relies on photoinitiators reacting to light, water droplets trapped in the ink film can refract light and physically block the reaction. Run with the minimum water necessary to keep the plate clean.

The Hydro-Cure Connection

Offset printing is a balancing act of oil (ink) and water (fountain solution). When transitioning to LED UV, operators often find they need to run tighter water settings.

Emulsification: If the ink becomes "waterlogged," the UV light scatters before it hits the bottom of the ink film. This results in poor adhesion to the substrate.
pH and Conductivity: Ensure your fountain solution is compatible with LED UV inks. Incompatible chemistry can attack the resin in the ink, making it impossible to cure regardless of lamp power.

Strategic Implementation for ROI

Investing in the right setup ensures you get the ROI promised by LED technology—lower energy bills and instant drying. However, equipment selection is just as vital as the setup. If you are currently evaluating retrofitting your press or buying new, you need to understand the hardware specs.

For a deeper dive into hardware specifications, read our guide on How to Choose LED UV Curing for Offset Printing. It covers the critical distinctions between water-cooled and air-cooled systems relative to press size.

Summary Checklist for Consistent Curing

[ ] Gap Check: Is the lamp 10-20mm from the sheet?
[ ] Wavelength: Is the ink 395nm compatible?
[ ] Cooling: Is the chiller running < 40°C?
[ ] Cleanliness: Is the quartz window free of dust?
[ ] Water Balance: Are you running minimum dampening?

By rigorously controlling these variables, you transform your sheetfed LED UV process from a variable into a constant, ensuring high-quality, dry sheets in the delivery pile every time.
