Sheetfed Offset LED UV Curing: Typical Applications
Sheetfed offset LED UV curing is primarily used for high-end packaging, commercial printing on non-porous substrates, and fast-turnaround marketing materials. Because the LED UV process cures ink instantly without heat, it allows printers to run heat-sensitive materials like plastics, synthetic papers, and foils without distortion. It is widely adopted for luxury folding cartons, cosmetic packaging, and durable labels where superior scratch resistance and immediate finishing are required.
High-Value Packaging and Folding Cartons
The most common application for sheetfed offset LED UV curing is in the packaging sector, specifically for luxury and cosmetic markets. Brands demand high-gloss finishes and vibrant colors that "pop" off the shelf, often on challenging substrates.
Luxury Cosmetic and Pharmaceutical Boxes
LED UV allows for the application of thick, tactile coatings and spot varnishes inline without slowing down the press. Since there is no heat generated, delicate metallized board and foil-laminated cartons can be printed without curling or registration issues. This ensures the precise alignment required for pharmaceutical packaging regulations.
Food-Safe Packaging
While specific low-migration inks are required, LED UV systems are increasingly popular for food packaging because they eliminate the risk of mercury contamination (unlike conventional UV lamps) and produce no ozone.
Commercial Printing on Plastics and Synthetics
Commercial printers use LED UV to expand their service offerings beyond standard paper products. The ability to print on non-porous materials opens up lucrative markets previously dominated by screen printing or digital methods.

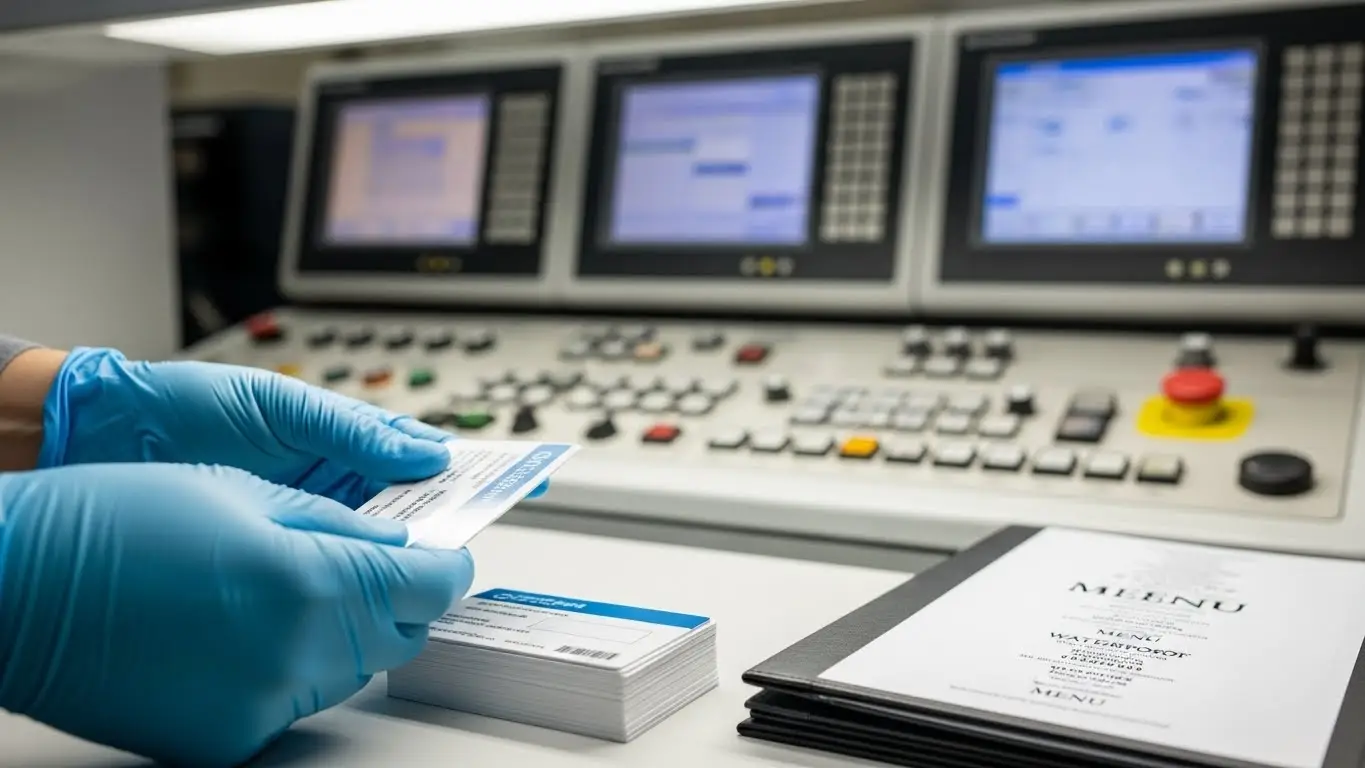

- Credit Cards and ID Cards: Printing on thick PVC requires a cool cure process to prevent the plastic from warping.
- Menus and Waterproof Maps: Synthetic papers (like Yupo) are non-absorbent. Conventional oil-based inks would take days to dry, whereas LED UV cures instantly, preventing set-off (ink transfer) in the delivery pile.
- Lenticular Printing: This 3D-effect printing requires printing directly onto plastic lenses. The "cold cure" of LED UV is essential here to maintain the optical integrity of the plastic lens.
Fast-Turnaround Commercial Marketing
For general commercial printing (brochures, direct mail, catalogs), the primary driver is speed. In a traditional offset environment, sheets must sit for hours or days to dry before they can be cut, folded, or bound.
With an offset printing UV LED curing system, the sheets are dry immediately upon exiting the press.
- Instant Finishing: Jobs can go straight to the bindery for cutting and folding.
- Powder Reduction: LED UV eliminates the need for spray powder (used to prevent sticking), resulting in a smoother finish and cleaner pressroom.
- Uncoated Stocks: LED UV inks sit on top of uncoated paper rather than soaking in. This results in sharper dots and brighter colors, even on standard offset paper.
Note: For optimal results on these varied substrates, ensuring your system is configured correctly is vital. Check our guide onSheetfed LED UV Curing Setup Tips for Consistent Cure.
Can You Retrofit LED UV to an Old Press?
Yes, retrofitting is a common and highly effective way to upgrade existing equipment.
Most legacy sheetfed offset presses can be retrofitted with LED UV lamp heads. Because LED units are compact and require less cabling and cooling infrastructure than conventional arc lamps, they can be installed at the interdeck (between print units) or at the end-of-press delivery.
Benefits of Retrofitting:
- Extended Press Life: modernization allows older presses to handle new, high-margin substrates.
- Space Saving: LED chillers and power cabinets are significantly smaller than traditional UV cabinets.
- Energy Reduction: Retrofits often reduce energy consumption by up to 70% compared to installing a new conventional UV system.
For a deeper dive into the installation process, read about How to Choose LED UV Curing for Offset Printing.
Comparison: LED UV vs. Conventional UV vs. Oil-Based
To understand why the industry is shifting, compare the operational characteristics of the three main technologies.
| Feature | LED UV Curing | Conventional UV (Arc) | Oil-Based (Traditional) |
| Drying Time | Instant | Instant | Hours to Days |
| Heat Generation | Low (Cold Cure) | High (Requires Chillers) | None |
| Substrate Range | Paper, Plastic, Foil, Film | Paper, Board (Heat limits plastics) | Paper, Board |
| Energy Use | Low (On/Off instant) | High (Always on) | Low |
| Ozone/Mercury | None | High Risk | None |
| Spray Powder | Not Needed | Not Needed | Required |
Frequently Asked Questions
What is the difference between H-UV and LED UV?
H-UV is a specific high-sensitivity UV technology developed by Komori that uses a doped iron bulb. While efficient, it is still a lamp-based technology. LED UV uses solid-state diodes. LED UV generally lasts longer (20,000+ hours) and uses less energy than H-UV lamps.
Do I need special inks for LED UV?
Yes. You cannot use standard oil-based inks or conventional UV inks. You must use inks formulated specifically for the narrow wavelength (usually 385nm or 395nm) of LED lamps. Learn more in our guide: What Inks Are Compatible with LED UV Offset Curing?.
Is LED UV curing better for the environment?
Yes. It eliminates the generation of ozone (removing the need for extraction ducts), removes mercury from the print shop, and consumes significantly less electricity than conventional UV drying systems.
Can LED UV cure varnish?
Yes, but the varnish must be LED-specific. Some printers use a "hybrid" setup with LED lamps for inks and a conventional UV lamp at the end of the press to cure cheaper, conventional coatings, though fully LED varnishes are becoming more standard.
Key Takeaways
- Versatility: Sheetfed LED UV enables printing on plastics, foils, and synthetic papers without heat distortion.
- Speed: Instant curing allows for immediate finishing (cutting/folding) and faster delivery times.
- Quality: Inks cure on the surface, providing sharper images and higher gloss on uncoated papers.
- Safety: The technology is mercury-free and ozone-free, making it safer for operators and suitable for food-safe packaging workflows.
Conclusion
Sheetfed offset LED UV curing has transformed from a niche technology to a standard requirement for high-quality packaging and commercial printing. By enabling instant drying on virtually any substrate, it allows printers to take on high-value jobs like luxury boxes and plastic cards that were previously impossible with standard offset presses.
If you are ready to upgrade your press capabilities, assess your current integration options to determine if a retrofit or new system is the right path for your business.
