What is High-Speed UV Curing?

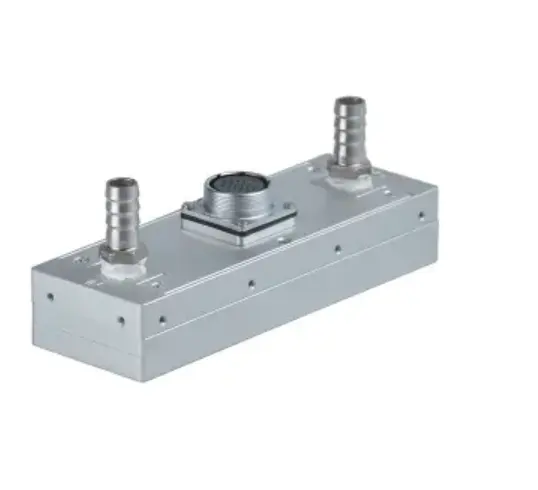

High-speed UV curing is a process in which the inks, coating, or adhesive are hardened quickly with UV LED light of certain wavelengths (Usually 365nm, 385nm, or 395nm). How it works:

1. UV light is produced in a UV LED curing module.

2. The adhesive or coating has photo-initiators that interact with the light.

3. The material immediately cures - a strong bond, which is durable.

Unlike traditional UV LED curing, fast UV LED curing gives an instant result and does not require any warm-up period. This suits it to high-speed production lines that are continuous in nature.

UV LED Curing Box CS80A- The most High-speed UV Curing Solution.

The CS80A UV LED curing box is a small yet strong system that can be used in the laboratory, during prototype development, and manual production processes. It is a high-speed UV curing solution that is one of the best in small-scale applications based on its advanced design and curing reliability. The curing box offers accuracy, repeatability, and flexibility in a small form factor, thereby being the best platform for engineers, researchers, and technicians to have reliable and consistent outcomes without occupying valuable space.

Major Characteristics of CS80A UV LED Curing Box

Compact but Powerful

• Dimensions: 300mm × 300mm × 80mm (L × W × H)

Small: The Spectrometer should be smaller than a workbench or lab station.

• Works with very small and delicate electronic items easily.

 Flexible Lamp Compatibility.

• Supports multiple types of UV LED lamps.

• Varied wavelength and curing strength.

Ideal in various adhesives, coatings, and encapsulants.

 Uniform Light Distribution

• Furnished with an internal reflector of its own design.

• Guarantees that even UV light diffuses to the curing area.

• Eliminates uncured spots and ensures uniform outcomes.

Designed for Precision Work

• Best in R&D and small-scale production.

• Helps in activities such as bonding, coating, and encapsulating.

• Large repeatable curing performance.

Why Choose the CS80A Curing Box?

CS80A UV LED curing box is a performance, precision, and reliability box. Even with such a small size, it provides excellent curing performance, and it is one of the most suitable ones in the laboratories, research and development, as well as the small-scale production facilities. Here’s why it stands out:

Key Benefits

• Mini, but not so small the small (300 x 300 x 80 mm) of the mini allows it to fit work benches and tight spaces. However, it performs as well as bigger systems in relation to high-performance curing.
• Energy-efficient and safe → It uses up to 70% lower energy in comparison with the traditional UV lamps, is designed to produce low heat output and utilizes optimized LED modules, and is designed to be safe to operate.
• Easy operation and use of interface → The CS80A has a simple interface, and thus, it does not have a steep learning curve. Curing can be installed and initiated by technicians almost instantly.
• Multi-purpose applications - Since it can be used in electronics and medical parts, and various types of coatings and adhesives, it can be easily adapted to various industries and processes.
• Regular curing results ⇒ The internal reflector will be used to ensure that there is even light distribution, which will result in repeatable results in each batch.

What Makes It Unique?

• Accurate design: It is specially designed to work at small-format curing processes where accuracy is important.
• High reliability: The custom reflector can make the UV intensity uniform, without any weak curing areas.
• Flexibility: Works with various UV LED lamps and wavelengths, providing users with project flexibility.
• Best in labs and custom production. It is ideal in the case of prototype development, R and D settings, and manual processes in which consistency is a priority.

Technical Information: UV LED Curing High-Speed

• Wavelengths: 365nm, 385nm, 395nm, 405nm

• Curing Time: 200 m/ min (maximum, depending on adhesive and substrate)

• Power: 816 W/cm 2 of high-intensity modules.

Lifespan 20,000+ hours (1,000 hours on mercury lamps)

• Cooling System: Air-cooled or water-cooled.

• Energy Saving: 70 percent less energy than conventional mercury UV lamps.

Compounds of High-Speed UV Curing

1. Printing & Packaging

• Rapid UV inks and coatings.

• High-quality, high-speed, smudge-free prints.

The ones are:

• Regular curing of labels, flexible packaging, and cartons.

2. Electronic and PCB Production.

* Quick UV-curing component adhesives.

• Fast UV curing of PCB conformal coatings.

• Stable bonding devoid of thermal stress.

3. Additive Manufacturing/ 3D Printing.

Fast UV LED curing on the resins.

• Assures quality, fineness of surface, and digitized cycle times.

4. Automotive & Aerospace

High-speed UV curing of adhesives, sealants, and coatings.

• Enhances performance in a severe environment.

5. Medical Devices

• Precision UV LED curing of catheters, syringes, and implants.

• Curing process is safe and mercury-free, as required by the industry.

The Reasons Why Industries prefer it to be done in High-Speed UV Curing.

1. Speed - The greater the cycle time, the greater the output.

2. Consistency- Consistency of treatment on the surfaces.

3. Savings in the energy expense- Lowering of electricity.

4. Sustainability - Mercury, eco-friendly process.

5. Flexibility -Applicable in various industries.

Conclusion

The CS80A UV LED curing box demonstrates that a large performance can be packed in a small box. Its accurate design, balanced light distribution, and interchangeable use with UV LED lamps make it a quick and dependable, and energy-efficient curing system that is applicable in a large variety of applications. The CS80A is not a tool because it integrates high-speed curing performance with ease of operation, thus making it not only a tool but a solution to the modern industries that require efficiency, safety, and precision. Visit UVET.
