UV LED Headlamps - Hands-Free UV. Full Control
Our UV LED headlamps free up your hands while delivering powerful, focused UV light—ideal for inspections, leak detection, and precision repairs in tight or dark environments.

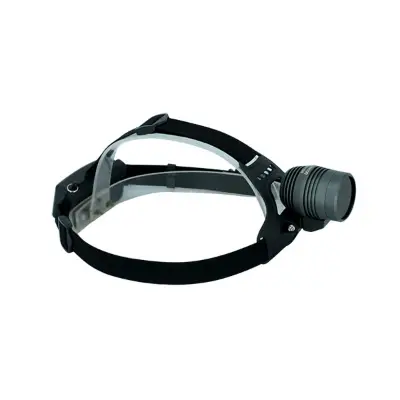

The UV LED Headlamp is a hands-free ultraviolet light source designed for precision inspection and detection tasks. Equipped with high-intensity UV LEDs, typically at 365 nm or 395 nm, it reveals hidden features such as cracks, stains, or fluorescent markings. Ideal for applications in non-destructive testing (NDT), HVAC leak detection, forensic analysis, and mineral hunting, the headlamp allows users to work safely and efficiently in low-light or confined spaces. Featuring adjustable straps, multiple light modes, and rechargeable battery options, UV LED headlamps combine portability, comfort, and performance for professional and hobbyist use.
Hands-Free Operation for Greater Efficiency
Wearable design keeps both hands free, enabling easier inspection, repair, and handling in dark, confined, or precision-required environments.
Powerful and Focused UV Illumination
High-intensity UV LEDs deliver stable, targeted light—perfect for fluorescence detection, leak inspection, surface analysis, and spot curing tasks.
Lightweight, Comfortable, and Long-Lasting
Ergonomically designed for extended wear without fatigue. Equipped with long-life or rechargeable batteries to support all-day use in industrial, lab, or field settings.
Technical Specifications
-
LED Type: High-brightness UV LED
-
Wavelength: 365nm or 395nm (optional)
-
Power Supply: Rechargeable lithium battery
-
Lamp Head Tilt: 0–90° adjustable
-
Material: ABS + aluminum alloy
-
Waterproof Rating: IPX4 or above
-
Runtime: Approx. 4–10 hours
Partner with us to develop UV LED Headlamp solutions that spark innovation, improve efficiency, and drive success in your industry
-
Hands-Free UV Lighting: Head-mounted design keeps your hands free while allowing full mobility during inspections or tasks.
-
High-Performance UV LED: Built with high-quality LED chips for strong, consistent ultraviolet output, suitable for fluorescence detection and counterfeit verification.
-
Multiple Wavelength Options: Available in 365nm and 395nm models to suit different inspection needs.
-
Adjustable Lighting Angle: The lamp head tilts up to 90°, providing flexible lighting angles for various working conditions.
-
Lightweight and Comfortable: Features an adjustable elastic headband for a secure, comfortable fit during extended use.
-
Wide Range of Applications:
-
Mineral, amber, and gemstone inspection
-
Fluorescent agent and cleanliness detection
-
Pet urine and oil stain detection
-
Night fishing, hiking, and repair work
-
✅ How to Choose the Right UV LED Headlamp
1. Select the Appropriate Wavelength
-
365 nm:
-
Emits true UV light with minimal visible glow
-
Best for professional uses like:
-
Fluorescent penetrant/magnetic particle inspection (NDT)
-
Leak detection (HVAC, automotive)
-
Forensics and mineral identification
-
-
-
395 nm:
-
More visible purple light
-
Suitable for general tasks like:
-
Pet stain detection
-
Scorpion hunting
-
-
✅ Recommendation: Choose 365 nm for precision and industry-grade fluorescence detection.
2. Check UV Intensity and Beam Pattern
-
Higher UV intensity = better visibility of fluorescent materials
-
Consider:
-
Wide beam for area inspections
-
Focused beam for detailed, close-up work
-
-
Look for output measured in μW/cm² at a specific distance (e.g., 15 inches)
3. Battery Life and Power Source
-
Rechargeable Li-ion batteries (e.g., 18650): Long-lasting and powerful
-
USB-C or micro-USB charging: Convenient recharging on-the-go
-
Battery indicator: Helps manage power during extended use
4. Comfort and Fit
-
Lightweight design for long wear
-
Adjustable and breathable straps
-
Balanced weight distribution (especially with rear battery packs)
-
Tiltable lamp head to direct light where needed
5. Durability and Weather Resistance
-
Look for IP65 or higher ratings for dust/water resistance
-
Shock-resistant housing is ideal for outdoor or industrial environments
6. Additional Features to Consider
-
White light mode for general illumination
-
Motion sensor switch for hands-free operation
-
Multiple brightness levels or strobe modes
-
Built-in UV filter to block visible light and enhance contrast
🧪 Summary Checklist
| Feature | Recommendation |
|---|---|
| Wavelength | 365 nm for professional use; 395 nm for general |
| UV Intensity | ≥1,000 μW/cm² (depending on application) |
| Battery Type | Rechargeable Li-ion (preferably USB charging) |
| Fit & Comfort | Lightweight, adjustable, breathable straps |
| Durability | IP-rated, impact-resistant housing |
| Beam Type | Wide for coverage; focused for detail |
| Extra Functions | White light, tilt angle, motion sensor |
