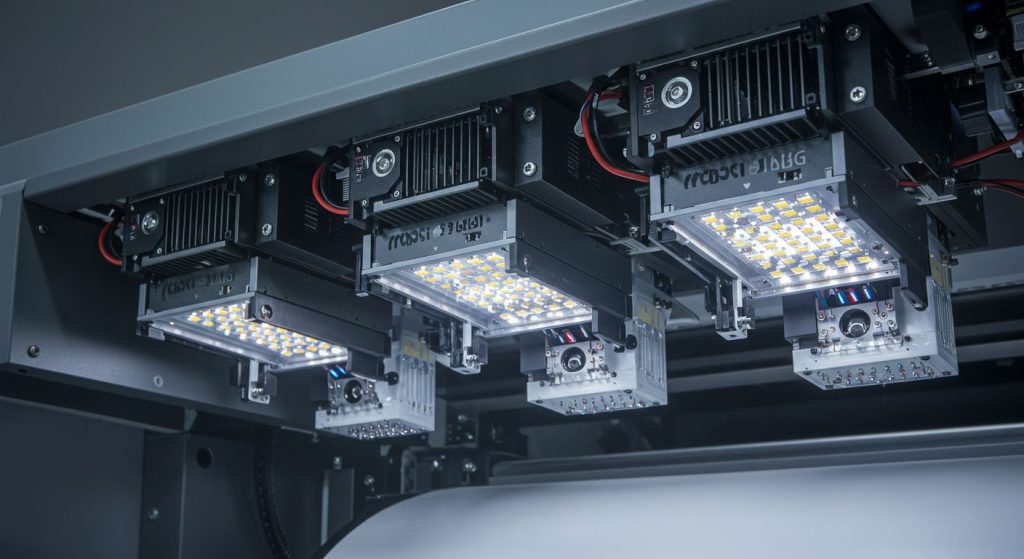

Application and Advantages of LED Curing Lamps in the Printing Industry

As printing technology continues to evolve, traditional ultraviolet (UV) curing methods are increasingly being replaced by LED curing technology. LED curing lamps not only offer higher energy efficiency and longer service life, but also significantly reduce production costs and enhance print quality. This article explores the principles, types, advantages, application scenarios, and selection considerations of LED curing lamps in the printing field, helping readers gain an in-depth understanding of this modern curing technology.

1. Working Principle of LED Curing Lamps

An LED curing lamp uses light-emitting diodes (LEDs) to emit specific wavelengths of ultraviolet light, which activate photoinitiators in printing inks or coatings. This activation triggers a rapid free-radical or cationic polymerization reaction, transforming the liquid ink or coating into a solid-state finish almost instantaneously. Compared to traditional mercury lamp curing, LED curing offers the following key features:

1. Concentrated Wavelengths
   LED curing lamps typically emit UVA in narrow bands around 365 nm, 385 nm, 395 nm, or 405 nm. In contrast, mercury lamps produce a broad spectrum that includes UVB (280 – 315 nm) and UVC (100 – 280 nm). This more focused spectrum means that LED output can be more closely matched to a photoinitiator’s absorption peak, thereby increasing curing efficiency.
2. Instant On/Off
   Unlike mercury lamps that require a warm-up period to reach operating temperature, LED curing lamps reach their designed radiation intensity almost immediately upon powering up. They also cool down rapidly when switched off, enabling “on-demand” operation. This characteristic enhances production line flexibility and minimizes disruptions to production flow.
3. Low Heat Output
   While emitting ultraviolet light, LED curing lamps generate far less perceptible heat than mercury lamps of equivalent power. As a result, heat-sensitive substrates such as plastic films or thermal labels are less prone to warping, deformation, or degradation during the curing process, helping to maintain material integrity.
4. Long Lifespan and Low Maintenance
   The service life of an LED curing lamp generally extends between 20,000 and 30,000 operational hours, whereas a traditional mercury lamp typically lasts only 500 to 2,000 hours. Fewer replacements translate into lower maintenance costs. Moreover, LED curing systems have simpler internal structures and do not require mercury vapor or complex cooling circuits, reducing environmental and safety risks.

2. Major Types of LED Curing Lamps in Printing

Depending on the printing method and the required curing width, LED curing lamps can be classified into several categories. Each category differs in irradiance (power density), lamp head width, cooling method, and applicable wavelength. The following are the most common types found in the printing industry:

1. Compact LED Curing Bars
   • Features: These lamps have widths ranging from 20 mm to 80 mm and power densities between 8 W/cm² and 16 W/cm². They can be easily mounted on small-scale digital printers, UV LED desktop printers, or handheld curing devices.
   • Applications: Ideal for desktop UV digital printing, handheld curing pens, or any situation requiring localized curing or small-batch prototyping. Their compact size and light weight make them suitable for end-of-line supplementary curing or post-print finishing.
2. Mid-Size LED Curing Units
   • Features: With widths between 80 mm and 150 mm and power densities from 12 W/cm² to 24 W/cm², mid-size units are often used on narrow-web roll-to-roll presses or small- to medium-sized flatbed printers.
   • Applications: Commonly found in narrow-web label printing, narrow-web inkjet presses, and on packaging print lines for both pre- and post-curing. Their integrated cooling systems (either air-cooled or water-cooled) ensure stable operation during continuous use.
3. Wide LED Curing Modules
   • Features: These modules can extend to widths of 325 mm, 500 mm, or larger, with power densities up to 30 W/cm². They frequently employ a modular design, allowing multiple lamp bars to be combined to match the required press width.
   • Applications: Used in large-format packaging printing, billboard and banner production, textile printing, and post-offset UV curing. Enhanced heat-dissipation systems (often water-cooled) maintain stable output, making them suitable for high-speed print lines requiring uniform, high-intensity curing.
4. Handheld or Spot Cure Systems
   • Features: These pen-style or small-head lamps output between 3 W and 15 W, focused into a narrow spot for precise local curing. They are extremely compact and convenient for operators to target specific areas.
   • Applications: Ideal for on-the-spot repairs, sample-making, localized adjustments, post-print finishing, or curing UV adhesive spots. Their portability and focused beam allow operators to cure any area precisely, regardless of the press speed.

3. Key Advantages of LED Curing Lamps in Printing

Compared to traditional mercury lamp curing, infrared drying, or hot-air systems, LED curing lamps offer significant advantages in printing production:

1. High Efficiency and Energy Savings
   • Improved Utilization: LED lamps can be tuned to match the photoinitiator’s absorption characteristics in the ink or coating, minimizing wasted energy.
   • Reduced Power Consumption: For the same curing performance, LED curing lamps typically consume only 30 % to 50 % of the power required by mercury lamp systems. Over time, this translates into substantial electricity cost reductions for printing operations.
2. Lower Maintenance Costs
   • Long Service Life: LEDs can run for nearly 30,000 hours without significant output degradation, which is far longer than mercury lamps. This longevity reduces lamp replacement frequency to perhaps once per year or less, cutting downtime and maintenance costs.
   • Simplified Upkeep: LED curing systems do not require handling mercury vapor or fragile glass lamp tubes, minimizing safety hazards and simplifying maintenance processes.
3. Friendly Temperature Profile
   • Low Heat Generation: LEDs emit very little infrared radiation, significantly reducing heat transfer to the substrate. This is particularly beneficial when printing on heat-sensitive materials such as thin plastics, corrugated board, or nonwoven fabrics.
   • Reduced Warping and Distortion: Lower temperatures prevent thermal shrinkage, curling, or adhesive failure on multilayer laminates or delicate films, ensuring dimensional stability during curing.
4. Environmental and Safety Benefits
   • Mercury-Free Operation: LED curing lamps eliminate mercury vapor entirely, complying with environmental regulations and removing an occupational hazard for printing staff.
   • Controlled UV Emissions: Due to targeted optics, LED curing units can more effectively confine UV radiation within protective housings, reducing worker exposure to harmful ultraviolet rays and improving workplace safety.
5. Stable Curing Quality
   • Consistent Spectrum and Intensity: LEDs emit a narrow, stable wavelength band with uniform irradiance, minimizing under- or over-curing problems that can lead to color shift, poor adhesion, or surface degradation.
   • Real-Time Monitoring and Adjustment: By integrating inline UV intensity sensors, printing lines can monitor LED output continuously. If irradiance falls below a set threshold, the system can alert operators or automatically adjust lamp current to maintain optimal curing consistency.

4. Typical Applications of LED Curing Lamps in Printing

Given their high efficiency, low thermal impact, and environmental friendliness, LED curing lamps have found widespread adoption in the following printing processes:

1. Flexographic Printing
   Flexo presses often print on labels, corrugated boxes, and plastic films. Traditional flexo curing relied on mercury lamp systems or hot-air ovens, which are relatively slow and can damage heat-sensitive substrates. LED curing can be implemented directly on the press to cure water-based or UV inks in-line—accelerating throughput while improving image sharpness and gloss.
2. Digital Inkjet Printing
   UV inkjet printers require curing units positioned immediately after the print heads to polymerize droplets before they spread on the substrate. LED curing lamps, with their compact size and instant-on capability, integrate well adjacent to inkjet heads, allowing immediate curing to keep edges sharp and avoid ink migration on various substrates.
3. Screen Printing
   For printing on glass, metal, ceramics, plastics, and other substrates, UV screen inks are often cured using high-intensity broad-spectrum sources. LED curing lamps provide a narrow-band, high-intensity UVA output that can quickly crosslink the coating, enhancing production speed and yielding scratch-resistant, long-lasting prints.
4. Offset Printing (Post-Print Spot Curing)
   In offset workflows, certain special coatings—such as spot gloss varnish or tactile/dimensional effects—require additional UV curing after the main press run. Portable LED curing lamps can serve as spot-curing tools, offering a flexible, stand-alone method to selectively cure coatings for visual or tactile finishing effects.
5. Post-Print Finishing
   In finishing operations (die-cutting, folding, gluing, or mounting), LED curing lamps are used to cure adhesives, coatings, or laminates. Their low-heat output is especially advantageous when laminating polyethylene, polypropylene, or other heat-sensitive films, preventing delamination or bubbling.

5. Selection Considerations and Maintenance of LED Curing Lamps

To achieve optimal curing performance, selecting the right LED curing lamp for a given printing process requires careful consideration of the following factors:

1. Wavelength Compatibility
   Different UV ink and coating formulations contain photoinitiators that absorb at various specific wavelengths—commonly around 365 nm, 385 nm, 395 nm, or 405 nm. When choosing an LED curing lamp, ensure that the emitted wavelength closely matches the absorption peak of the ink’s photoinitiator. Some applications benefit from dual-wavelength or multi-wavelength LED heads, which can accommodate a broader range of formulations.
2. Irradiance (Power Density)
   The irradiance level directly impacts curing speed and depth. Label and film printing often require 8 W/cm² to 16 W/cm² of irradiance, whereas thick coatings or large-format printing may need 20 W/cm² or higher. Calculate the required irradiance based on line speed, ink thickness, and desired curing margin. Underpowered lamps can lead to incomplete curing, while overpowered lamps waste energy and potentially overheat the substrate.
3. Lamp Head Length and Modular Design
   The width of the printing press or substrate determines the necessary lamp length. For a 300 mm web width, choose a 325 mm lamp or combine multiple shorter modules (e.g., three 100 mm bars) for a continuous output. In addition, allow adequate clearance for heat dissipation around the lamp head and make sure mounting brackets or rails are compatible.
4. Cooling Method
   Although LEDs generate far less heat than mercury lamps, they still require effective heat dissipation to maintain optimal operating temperature (typically below 45 °C). Low-power, intermittent-duty applications may suffice with air-cooled designs. High-speed, high-power runs generally require water-cooled systems to stabilize LED junction temperature, ensuring consistent output and prolonging lamp life.
5. Mechanical Integration and Safety Guards
   During selection, consider how the curing lamp will attach to the press or finishing equipment. Mounting options can include pneumatic cylinders, height-adjustable rails, or fixed brackets. The lamp housing should include protective shields or reflectors that block stray UV radiation. Install UV intensity sensors for real-time feedback, and set up interlocks or emergency shutoffs to safeguard operators.
6. Maintenance and Replacement Costs
   Even though LED lamps have long lifespans, routine maintenance is still necessary. Regularly clean the lamp’s quartz window and cooling vents to prevent dust buildup, which can degrade output and accelerate thermal wear. For large installations, modular lamp heads with quick-release connectors allow individual bars to be swapped without shutting down the entire line, minimizing downtime and replacement expenses.

6. Future Trends and Conclusion

As the printing industry’s demands for rapid turnaround, personalization, and short-run versatility continue to grow, LED curing technology will evolve along these trends:

• Higher Power and Broader Spectra: Next-generation LED chips will deliver greater power per chip. Combining multiple narrowband peaks (e.g., 365 nm + 395 nm) within a single lamp module will accommodate a wider range of photoinitiator chemistries, enabling faster and deeper curing across various ink families.
• Smart and Networked Monitoring: Integrating Internet of Things (IoT) capabilities into LED curing systems will allow real-time monitoring of irradiance, temperature, and lamp health. Remote diagnostics and automated parameter adjustments will minimize operator intervention, lower energy consumption, and extend equipment life.
• Enhanced Environmental Compliance and Lower Costs: As LED technology matures and production scales up, upfront costs for LED curing units will continue to decline. Their mercury-free, low-ozone design meets tightening environmental regulations worldwide, making it easier for print shops to phase out legacy mercury-based systems.
• Integrated and Modular Solutions: Future LED curing equipment will be designed for “plug-and-play” integration across various printing platforms—whether flexo, inkjet, offset post-press, or even emerging additive manufacturing processes. Modular lamp bars and control units will facilitate rapid reconfiguration for different widths, substrates, and production speeds.
