The Critical Role of Monitoring UV Intensity for UV LED Curing Lamps in Inkjet Printing

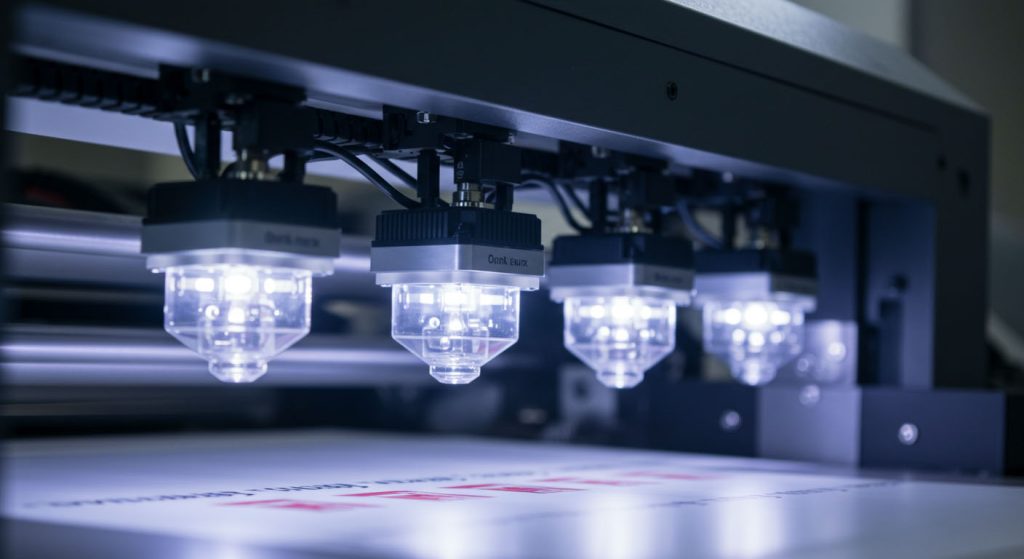

As inkjet printing technologies continue to advance, UV LED curing lamps have emerged as indispensable components in modern production workflows. By instantly solidifying UV-curable inks and coatings, these lamps accelerate print speeds, improve image sharpness, and enhance overall product durability. However, to achieve consistently high-quality results and maintain process efficiency, it is essential to regularly measure and verify the UV output of these lamps. In this article, we explore the fundamental principles behind UV LED curing, outline why routine intensity checks are crucial, examine the key factors that influence UV output, and describe the tools and best practices for maintaining optimal curing conditions.

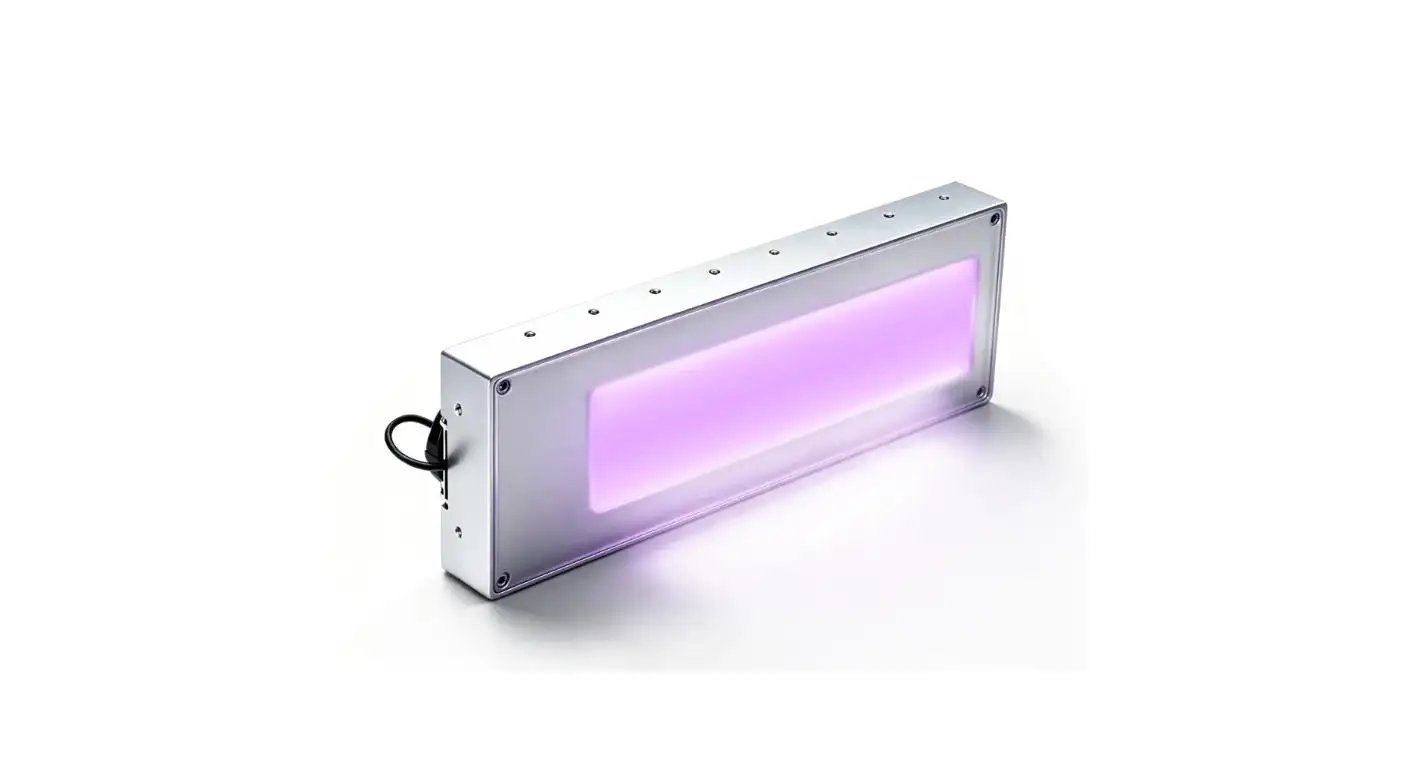

1. Overview of UV LED Curing in Inkjet Printing

1.1 What Is UV LED Curing?
UV LED curing harnesses ultraviolet light emitted by specialized light-emitting diodes (LEDs) to trigger rapid photochemical reactions within UV-sensitive inks and coatings. These formulations contain photoinitiators that absorb UV-A wavelengths (commonly in the 365 nm, 385 nm, 395 nm, or 405 nm bands) and generate free radicals upon exposure. The free radicals, in turn, initiate polymerization and crosslinking, transforming liquid-based ink into a solid, fully cured film in a matter of milliseconds or seconds.

1.2 Why Inkjet Printing Relies on UV LED Technology
In inkjet applications—ranging from commercial signage and packaging to label production and textile printing—the ability to cure ink immediately upon deposition offers several key advantages:

• Rapid Turnaround: Instant curing eliminates the need for long drying times or external drying ovens, allowing printed substrates to move through the production line without delay.
• Sharper Image Quality: Because the ink solidifies upon contact with the substrate, there is minimal dot spread. This results in crisp edges, fine detail, and vibrant color density.
• Enhanced Durability: Fully crosslinked ink exhibits superior resistance to abrasion, scratching, moisture, and chemical exposure, making it ideal for applications requiring long-term durability.
• Expanded Substrate Compatibility: UV LED systems operate at lower temperatures (compared to conventional mercury lamps), enabling printing on heat-sensitive materials such as thin plastic films, foam boards, or certain coated papers without risk of warping or shrinking.

2. Why Regular UV Intensity Checks Matter

Although UV LED curing lamps are renowned for their longevity—often rated for 20,000 to 30,000 operational hours—their UV output inevitably declines over time. Even a seemingly small decrease in intensity can translate into under-cured ink, compromised adhesion, or subpar print appearance. Here are the primary reasons why routine monitoring of UV intensity is non-negotiable:

1. Ensuring Consistent Curing Performance
   As the LED diodes age, the total UV irradiance (measured in milliwatts per square centimeter, mW/cm²) gradually falls. If the print line continues running without adjustment, ink layers may not achieve full polymerization. Under-cured ink often feels tacky to the touch, exhibits lower scratch resistance, and may even develop cracking or delamination over time. By benchmarking a lamp’s UV output at set intervals—weekly, biweekly, or according to printed volume—operators can detect meaningful drops in irradiance before they impact product quality.
2. Maintaining Color Fidelity and Image Sharpness
   When UV intensity dips below the manufacturer’s recommended curing threshold, printed dots can bleed, resulting in jagged edges, reduced color saturation, or uneven gloss levels. This is especially critical in fine-art prints, high-end packaging, and specialty labels, where visual consistency is paramount. By keeping UV output within a specific range, press operators ensure that color profiles remain accurate from the first sheet to the last.
3. Maximizing Production Efficiency
   If the lamp output gradually weakens and goes unnoticed, the operator might unknowingly increase the print line’s dwell time (slower substrate speed) or inadvertently overexpose the ink in a bid to compensate. Both scenarios—slowing the line or “over-curing”—drive up energy consumption and reduce throughput. Timely intensity checks allow the print line to run at optimal speed, minimizing production downtime and energy waste.
4. Extending Lamp Lifespan and Reducing Costs
   By tracking UV irradiance, technicians can plan lamp head replacements or service interventions proactively rather than react reactively. In many cases, replacing a near end-of-life LED module before it completely fails is more cost-effective than scrambling for an emergency swap, which could halt production for hours or days.
5. Complying with Industry Standards and Regulatory Requirements
   Certain printing applications—particularly those involving food packaging, medical device labeling, or outdoor signage—mandate strict adherence to curing specifications. Insufficient UV doses may result in incomplete ink crosslinking, potentially leaching uncured monomers or photoinitiators over time. Many industry bodies have published guidelines for minimum UV dosages to achieve regulatory compliance. Regular intensity measurements help ensure that the lamp continues to deliver the required energy dose throughout its operational lifetime.

3. Primary Factors That Influence UV LED Lamp Intensity

Understanding why and how UV output changes is the first step toward effective intensity management. The following factors play a significant role in determining and altering the real-world irradiance of a UV LED curing lamp:

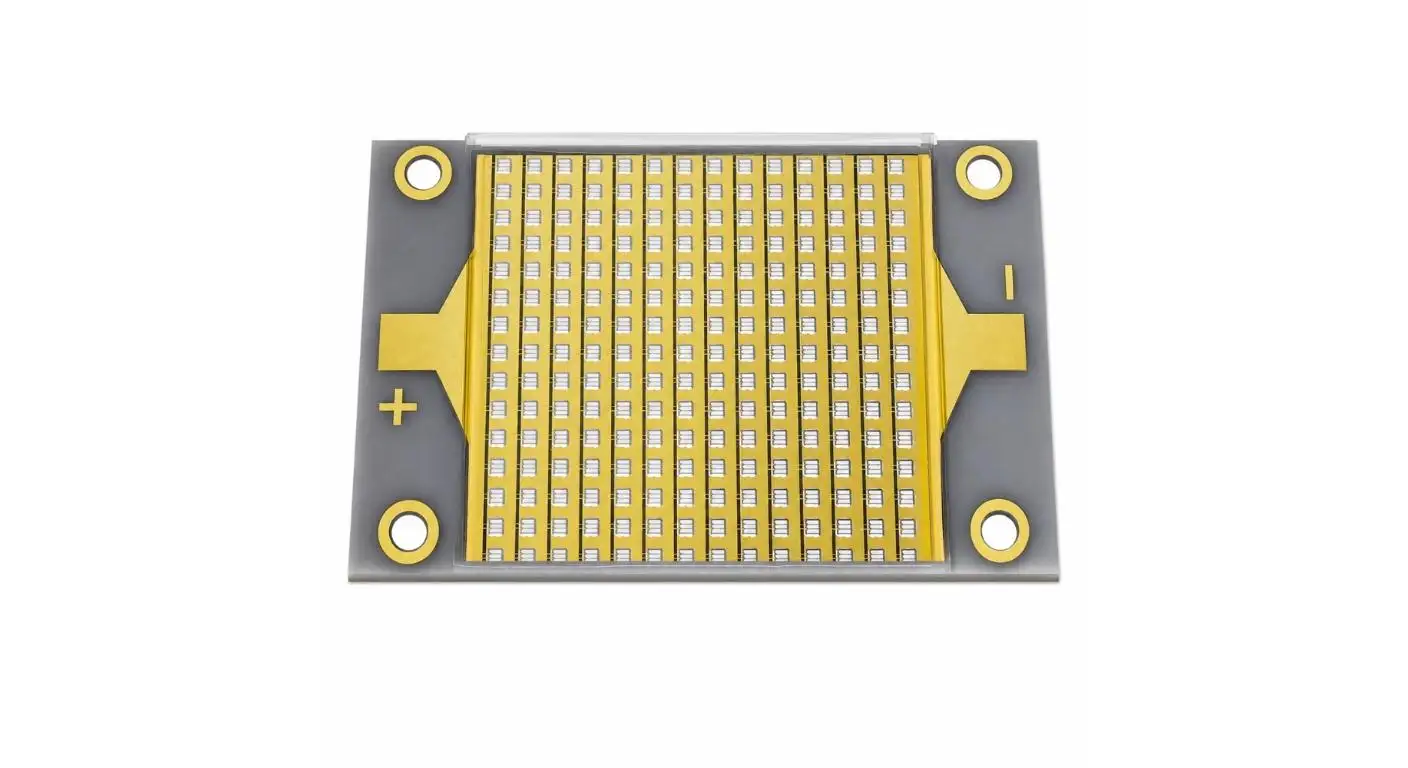

1. LED Diode Aging
   While modern UV LED chips boast lifespans measured in tens of thousands of hours, they do gradually lose efficiency. The semiconducting materials that emit UVA photons degrade under continuous high-current operation. Over time, less light is emitted for the same electrical input, resulting in diminished curing power. The degradation curve is typically gradual at first, then accelerates once a certain threshold (e.g., 60 % of initial output) is reached.
2. Operating Temperature
   UV LED efficiency is highly temperature-dependent. As junction temperatures exceed design specifications (commonly around 45 °C to 55 °C), the internal quantum efficiency of the LED chip falls, reducing photon output. If the lamp’s cooling system—whether air-cooled heat sinks, forced-air fans, or water-cooling loops—becomes clogged with dust or malfunctions, thermal runaway can accelerate output drop-off and shorten lamp life. Monitoring both UV intensity and operating temperature is therefore essential.
3. Ambient Conditions (Humidity and Dust)
   Elevated humidity levels can affect electrical boards, connectors, and optical interfaces, sometimes leading to water condensation or corrosion over time. Similarly, dust and fine particulates settling on the quartz or sapphire window that covers the LED array can block or scatter UVA photons, dampening effective irradiance at the substrate surface. Regular cleaning of optical surfaces and maintaining proper factory humidity (usually 40 % to 60 %) help preserve consistent output.
4. Power Supply Fluctuations
   UV LED lamps rely on stable DC power at the correct voltage and current. Fluctuations in the input voltage (e.g., dips caused by upstream equipment cycling on/off) or a failing power supply unit (PSU) can momentarily or permanently reduce the energy delivered to the LEDs, leading to lower UV intensity. Many modern curing systems incorporate a monitoring circuit that measures supply voltages in real time. If the PSU cannot maintain constant current at the rated voltage, the lamp’s UV output will inevitably suffer.
5. Optical Lens and Window Wear
   Over months of continuous operation, the protective window or optical lens may develop micro-scratches, slight yellowing, or deposits from ink overspray. Even minor optical degradation can scatter UVA light or shift its emission pattern, reducing the uniformity and strength of the curing field. Inspecting and, if necessary, replacing optical windows in accordance with manufacturer recommendations is a critical maintenance step.
6. System Integration Variables
   In some inkjet platforms, the distance between the lamp window and the substrate can change due to servo drift, conveyor belt wear, or manual adjustments in the press setup. Because UV irradiance diminishes with distance (following an inverse square or near-inverse-square law, depending on optics), even a millimeter or two of extra gap can translate into a measurable drop in delivered UV energy. Ensuring that lamp-to-substrate spacing remains within design tolerances is therefore crucial.

4. Tools and Techniques for Measuring UV Output

To maintain a UV LED curing lamp at peak performance, printers must employ reliable instruments and systematic procedures to capture quantitative UV intensity data. Below are the most commonly used tools and practices:

1. Handheld UV Radiometers
   A handheld UV radiometer is a dedicated instrument that measures irradiance in mW/cm². It typically consists of a calibrated photodiode or sensor tuned to the lamp’s peak emission wavelength. To take a measurement, the operator places the sensor at the same distance (and angle) where the substrate will pass during production, activates the lamp, and records the reading. Most radiometers display instantaneous irradiance, and higher-end models can also integrate total UV dose over a set time.
2. Inline UV Sensors
   On fully automated press lines, inline UV sensors are positioned at one or more points under the curing lamp, constantly sampling UV output as production runs. These sensors are often built into the conveyor system and log real-time data via the press’s control panel or an external PLC. If irradiance drops below a predefined threshold, the system can automatically alert the operator, slow down the line, or even pause printing until the lamp’s performance is restored.
3. Integrating Radiometers
   For applications that require both irradiance (power density) and dose (energy over time) monitoring, integrating radiometers capture both metrics. These devices record irradiance continuously and compute the total energy imparted to the ink layer over a given exposure duration. Such data is especially useful for thicker inks or coatings that require a minimum UV dose (e.g., 300 mJ/cm²) to achieve full cure.
4. Thermal Imaging Cameras (Supplementary Use)
   Thermal imaging does not directly measure UV intensity, but it helps verify that the lamp’s heat sink and cooling system function correctly. By scanning the lamp head with an infrared camera, technicians can identify hotspots that may indicate blocked airflow, failing fans, or thermal interface degradation. Maintaining proper operating temperature indirectly supports consistent UV output.

5. Establishing a UV Intensity Maintenance Protocol

Implementing a structured maintenance and monitoring routine is the best way to safeguard product quality and extend lamp life. Below is a sample protocol that print shops can adapt to their specific operating environment:

1. Baseline Measurement
   • Initial Setup: When a new UV LED lamp is installed (or after a lamp head replacement), run the lamp for 10 minutes to reach its stable operating temperature.
   • Record Baseline: Use a calibrated UV radiometer to measure irradiance at the substrate plane (e.g., 5 mm below the lamp window) at several evenly spaced points (left, center, right). Average these values to establish a baseline irradiance. Document the date, lamp model, power setting, ambient temperature, and humidity.
2. Routine Weekly Checks
   • Warm-Up Period: Allow the lamp to operate for at least five minutes before measuring.
   • Single-Point Check: Position the radiometer sensor at the center point under the lamp and record the irradiance reading. Compare against the baseline.
   • Threshold Action: If the irradiance has declined by more than 10 % from baseline, schedule a more thorough inspection (see below).
3. Monthly Detailed Inspection
   • Multi-Point Mapping: Perform irradiance measurements at left, center, and right under the lamp to detect any uneven degradation across the LED array.
   • Optical Window Check: Visually inspect for dust, smudges, or scratches. Clean or replace the window if needed.
   • Cooling System Audit: Examine fans, air filters, and heat sinks for dust accumulation. Use compressed air or a soft brush to remove debris. Check water-cooled units for proper flow and any signs of leaks.
   • Power Supply Verification: Measure input voltage and current to ensure the PSU is delivering the correct values. Any deviation beyond ±5 % from nominal could indicate a failing PSU.
4. Quarterly or Semi-Annual Replacement
   • Optical Window Replacement: Depending on operating conditions (ink overspray, high humidity), replace the quartz or sapphire window to prevent any ongoing attenuation of UV output.
   • Fan or Pump Servicing: Replace worn or noisy fans and check water-cooling pump impellers for signs of wear. A less effective cooling system will accelerate LED aging.
   • Sensor Calibration: Send handheld radiometers to a calibration laboratory at least once every 6–12 months to ensure measurement accuracy.
5. Service and Lamp Head Swap
   When multi-point irradiance readings fall below 60 %–70 % of the original baseline, it is generally time to replace the lamp head entirely. Attempting to run a lamp significantly past its useful life threshold often results in poor curing quality and elevated maintenance costs.

6. Ensuring Industry Compliance and Quality Control

Many printing industries have established guidelines or standards for minimum UV doses to guarantee full cure for specific ink types, especially in sectors such as:

• Food and Beverage Packaging: Regulations often mandate zero migration of monomers or photoinitiators into food products. Insufficient UV curing can allow residual uncured chemicals to remain in the ink layer, creating potential health risks.
• Medical Device Labeling: Labels applied to medical devices must endure sterilization processes, moisture, and abrasion. Under-cured ink may fail regulatory pull tests or reveal poor adhesion under autoclave conditions.
• Outdoor Signage and Decals: Outdoor printed graphics must withstand UV exposure, rain, and fluctuating temperatures. Inadequate curing can lead to accelerated fading, cracking, or peeling under environmental stress.

To meet these requirements, printers must:

1. Maintain Detailed Records: Document UV irradiance readings, maintenance activities, and lamp replacements in a centralized log. Having a well-organized history provides traceability during quality audits and helps identify recurring failure modes.
2. Implement Colorimetric Controls: Pair UV intensity monitoring with periodic color bar checks, densitometer readings, or spectrophotometer measurements to ensure that visual output (color density, dot gain) remains within tolerances.
3. Train Operators and Technicians: Ensure that staff understand the critical relationship between UV intensity and curing quality. Regular training on how to operate radiometers, interpret readings, and perform basic lamp head cleaning can prevent avoidable errors.

7. Conclusion: Best Practices for Upholding Optimal UV Curing

UV LED curing lamps have revolutionized inkjet printing by offering instant, low-heat, and energy-efficient curing solutions. To fully capitalize on these advantages—faster turnaround times, sharper image fidelity, and improved durability—print shops must prioritize the regular monitoring of UV irradiance. By adopting a systematic maintenance program that includes routine intensity checks, multi-point measurements, and proactive component servicing, operators can:

• Deliver Consistent Print Quality: Maintain sharp, fully cured ink layers from the first print to the last.
• Maximize Lamp Lifespan: Detect gradual output decline early and replace lamp heads under controlled conditions, preventing sudden failures.
• Optimize Throughput and Efficiency: Avoid slowdowns or reprints caused by under-cured ink, ensuring each press run achieves its target production rate.
• Ensure Regulatory Compliance: Uphold industry-mandated UV dosage requirements for food packaging, medical labeling, or outdoor signage applications.
