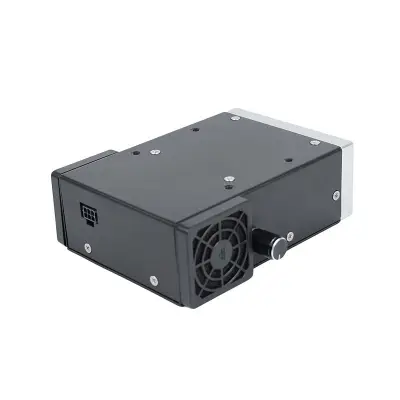

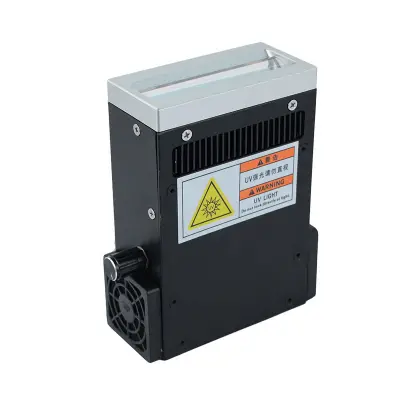

UV LED Curing Lamp 80x15mm Inkjet Printing Series
- Model: UVSS-54B
- Various Sizes
UVET company’s 80x15mm series UV LED lamps provide 8W/c㎡ UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.
Specifications
| Part No. UVSS-54B-2 | Wavelength 365nm, Intensity 6W/cm2 |
| Part No. UVSE-54B-2 | Wavelength 385nm, Intensity 8W/cm2 |
| Part No. UVSN-54B-2 | Wavelength 395nm, Intensity 8W/cm2 |
| Part No. UVSZ-54B-2 | Wavelength 405nm, Intensity 8W/cm2 |
| Irradiation Area | 80x15mm |
| Heat Dissipation | Fan cooling |
-
Descriptions
UVET company’s 80x15mm series UV LED lamps provide 8W/c㎡ UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.
It’s ideal for small and wide format inkjet printers, digital printers, screen printers, 3D printing, and others.The output UV power can be adjustable. It is easy to operate and integrate into UV LED printing systems.
