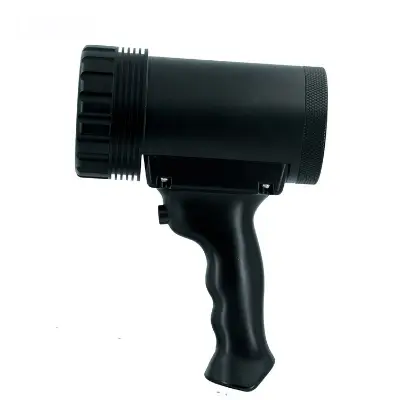

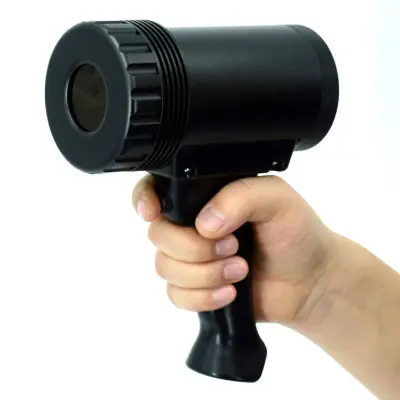

Handheld UV LED Lamp PGS150A
- Model: PGS150A
- Various Sizes
The PGS150A UV inspection lamp provides a 7 in (17cm) coverage area at 15 in (38cm) with a minimum UV intensity of 2,000 W/cm². Its optical glass lens ensures a uniform UV beam with no transmittance loss over time. Designed for versatility, it supports both handheld and fixed operation. The fanless mechanical cooling system efficiently dissipates heat, and it offers dual power options: a rechargeable Li-ion battery or a 100-240V AC adapter.
Specifications
| Part No. | PGS150A |
| Peak Intensity @380mm distance | 8000µW/cm² |
| UV Beam Size @380mm distance | Φ170mm |
| Wavelength | 365nm |
| Power Supply | 100-240VAC Adapter / Li-ion Battery |
| Weight |
600g(Without Battery); 750g(With Battery) |
-
Descriptions
- PGS150A: 7 in (17cm) diameter coverage area at 15 inches (38cm), with a min UV intensity of 2,000 W/cm² .
- Optical glass lens ensures the uniform UV light beam. Comparing to the plastic lens, it is almost no transmittance attenuation after long time use.
- Two operating modes: hold the handle of Lamp for flexible inspection; fix the lamp via the screw holes at the tail of the handle for stationary inspection.
- The heat generated from the LEDs is dissipated via a mechanical cooling system – no fans necessary!
- Two power supply modes: rechargeable Li-ion battery; pluggable 100-240V AC adapter.
-
Video
