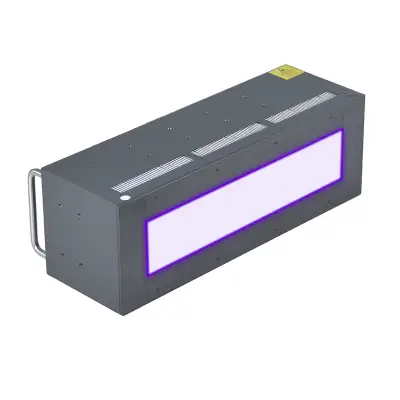

UV LED Curing Lamp 325x40mm Printing Series
- Model: UVSS-780J5-M
- Various Sizes
UVET company’s 325x40mm series UV LED lamps provide a maximum 16W/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.
Specifications
| Part No. UVSS-780J5-M | Wavelength 365nm, Intensity 12W/cm2 |
| Part No. UVSE-780J5-M | Wavelength 385nm, Intensity 16W/cm2 |
| Part No. UVSN-780J5-M | Wavelength 395nm, Intensity 16W/cm2 |
| Part No. UVSZ-780J5-M | Wavelength 405nm, Intensity 16W/cm2 |
| Irradiation Area | 325X40mm |
| Heat Dissipation | Fan cooling |
-
Descriptions
UVET company’s 325x40mm series UV LED lamps provide a maximum 16W/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.
It’s ideal for wide format inkjet printers, digital printers, screen printers, 3D printing, coating and others.The output UV power can be adjustable. It is easy to operate and integrate into printing systems.
