Home / Product / LED UV Curing / UV LED Area Curing / UV LED Linear Curing Lamp 120x10mm Series

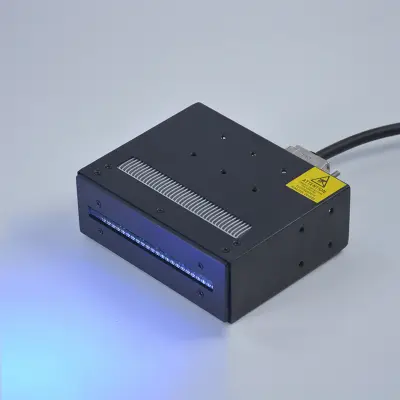

UV LED Linear Curing Lamp 120x10mm Series

Model: UVSS-30X1: 365nm; 385nm; 395nm; 405nm

UVET company’s UV LED curing system comes with 120x10mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-30X1	Wavelength 365nm, Intensity 5W/cm²
Part No. UVSE-30X1	Wavelength 385nm, Intensity 6W/cm²
Part No. UVSN-30X1	Wavelength 395nm, Intensity 6W/cm²
Part No. UVSZ-30X1	Wavelength 405nm, Intensity 6W/cm²
Irradiation Area	120x10mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s UV LED curing system comes with 120x10mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

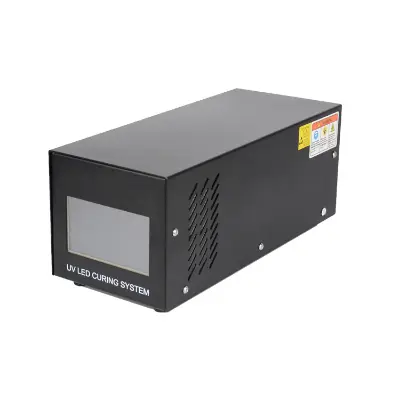

This UV LED curing machine offers all the benefits of LED light-curing technology, including high-intensity, less energy consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
