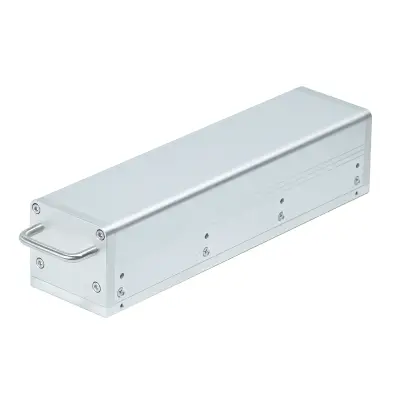

UV LED Curing Lamp 260x40mm Printing Series
- Model: UVSE-12R6-W
- Various Sizes
UVET company’s 260x40mm series UV LED lamps provide up to 20W/cm2 UV intensity. The optional wavelengths include 385nm and 395nm. It provides curing solutions for various UV printing systems with fast, efficient and energy-saving features.
Specifications
| Part No. UVSE-12R6-W | Wavelength 385nm, Intensity 20W/cm2 |
| Part No. UVSN-12R6-W | Wavelength 395nm, Intensity 20W/cm2 |
| UV Technology | COB UV modules |
| Irradiation Area | 260x40mm |
| Heat Dissipation | Water cooling |
| Main Application | High-speed printing |
-
Descriptions
UVET company’s 260x40mm series UV LED lamps provide up to 20W/cm2 UV intensity. The optional wavelengths include 385nm and 395nm. It provides curing solutions for various UV printing systems with fast, efficient and energy-saving features.
It’s ideal for UV inkjet printing, digital printing, screen printing, 3D printing and others. The irradiation time and UV intensity can be independently adjustable. It is easy to operate and integrate into UV LED printing systems.
