UV LED Area Curing Lamp 300x300mm Series

Model: UVSS-1300S3: Various Sizes

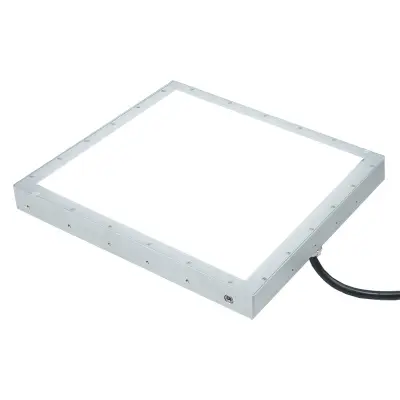

UVET company’s water-cooled UV LED lamp comes with 300x300mm irradiation area and 2.5W/cm^2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, opto-electronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-1300S3	Wavelength 365nm, Intensity 2500mW/cm²
Part No. UVSE-1300S3	Wavelength 385nm, Intensity 3000mW/cm²
Part No. UVSN-1300S3	Wavelength 395nm, Intensity 3000mW/cm²
Part No. UVSZ-1300S3	Wavelength 405nm, Intensity 3000mW/cm²
Irradiation Area	300x300mm
Heat Dissipation	Water cooling

Descriptions

Descriptions

UVET company’s water-cooled UV LED lamp comes with 300x300mm irradiation area and 2.5W/cm^2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, opto-electronics industry, and so on.

This UV LED Curing machine offers all the benefits of LED light-curing technology, including high-intensity, less energy consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
