UV LED Area Curing Lamp 380x30mm Series

Model: UVSS-180W2: Various Sizes

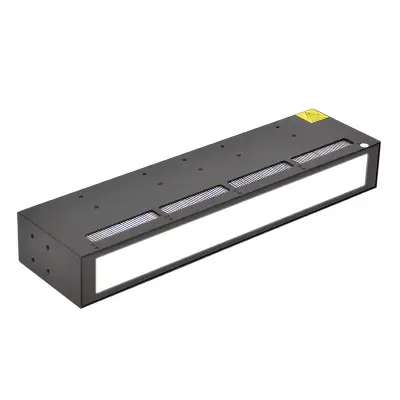

UVET company’s fan-cooled UV LED lamp comes with 380x30mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, opto-electronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-180W2	Wavelength 365nm, Intensity 2500mW/cm²
Part No. UVSE-180W2	Wavelength 385nm, Intensity 3000mW/cm²
Part No. UVSN-180W2	Wavelength 395nm, Intensity 3000mW/cm²
Part No. UVSZ-180W2	Wavelength 405nm, Intensity 3000mW/cm²
Irradiation Area	380x30mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s fan-cooled UV LED lamp comes with 380x30mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, opto-electronics industry, and so on.

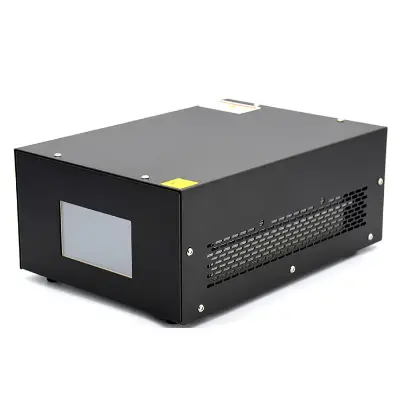

This UV LED Curing machine offers all the benefits of LED light-curing technology, including high-intensity, less energy consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
