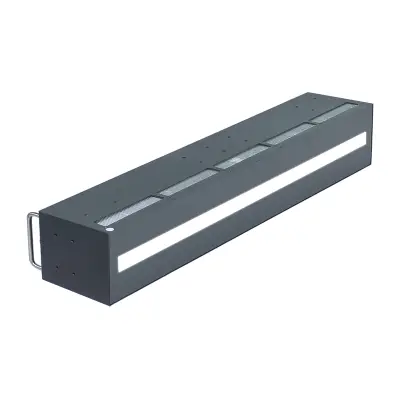

UV LED Curing Lamp 650x20mm Printing Series

Model: UVSS-780T6: Various Sizes

UVET company’s 650x20mm series UV LED lamps provide up to 12W/cm² UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-780T6	Wavelength 365nm, Intensity 8W/cm²
Part No. UVSE-780T6	Wavelength 385nm, Intensity 12W/cm²
Part No. UVSN-780T6	Wavelength 395nm, Intensity 12W/cm²
Part No. UVSZ-780T6	Wavelength 405nm, Intensity 12W/cm²
Irradiation Area	650x20mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s 650x20mm series UV LED lamps provide up to 12W/cm² UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.

It’s ideal for small and wide format inkjet printers, digital printers, screen printers, 3D printing and others. The irradiation time and UV intensity can be independently adjustable. It is easy to operate and integrate into UV LED printing systems.
