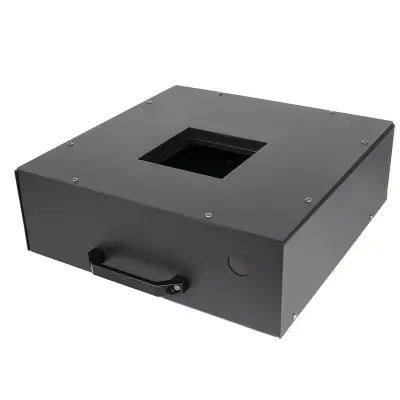

UV LED Curing Chamber CS80A
- Model: CS80A
- Various Sizes
The CS80A is an UV LED curing chamber for laboratory use and manufacture by hand. By using different UV LED lamps, CS80A can be used for a large variety of applications and offers individual process solutions.
Specifications
| Part No. | CS80A |
| Inside Dimensions | 300(L)x300(W)x80(H) mm |
| Outline Dimensions | 400(L)x400(W)x140(H) mm |
| Working Status | Visible via anti-UV leakage window |
| Operation | Close the door:The UV LED lamp starts working automatically. Open the door during irradiation: The UV LED lamp stops immediately. |
-
Descriptions
The CS80A is an UV LED curing chamber for laboratory use and manufacture by hand. By using different UV LED lamps, CS80A can be used for a large variety of applications and offers individual process solutions.
The CS80A has a useful working capacity of 300 x 300 x 80 mm (L x W x H) and is suitable for small component applications. It is very uniform UV light distribution owe to the inside reflectors design.
