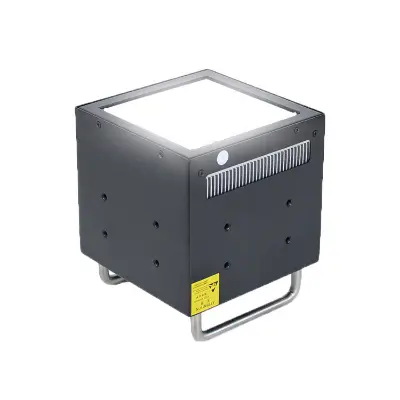

UV LED Area Curing System 100x100mm Series

Model: UVSS-144A: Various Sizes

UVET company’s fan-cooled UV LED curing system comes with 100x100mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-144A	Wavelength 365nm, Intensity 2500mW/cm²
Part No. UVSE-144A	Wavelength 385nm, Intensity 3000mW/cm²
Part No. UVSN-144A	Wavelength 395nm, Intensity 3000mW/cm²
Part No. UVSZ-144A	Wavelength 405nm, Intensity 3000mW/cm²
Irradiation Area	100x100mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s fan-cooled UV LED curing system comes with 100x100mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

This UV LED Curing machine offers all the benefits of LED light-curing technology, including high-intensity, less energy consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
