Home / Product / LED UV Curing / UV LED Area Curing / UV LED Area Curing System 150x150mm Series

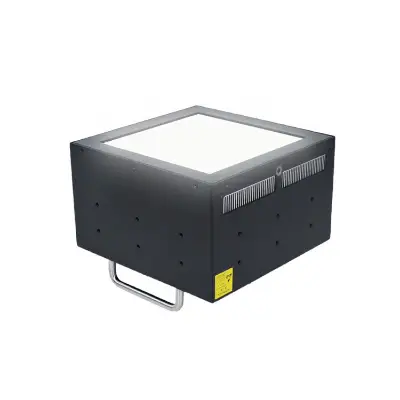

UV LED Area Curing System 150x150mm Series

Model: UVSS-180C: Various Sizes

UVET company’s fan-cooled UV LED curing system comes with 150x150mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-180C	Wavelength 365nm, Intensity 1500mW/cm²
Part No. UVSE-180C	Wavelength 385nm, Intensity 1800mW/cm²
Part No. UVSN-180C	Wavelength 395nm, Intensity 1800mW/cm²
Part No. UVSZ-180C	Wavelength 405nm, Intensity 1800mW/cm²
Irradiation Area	150x150mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s fan-cooled UV LED curing system comes with 150x150mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

This UV LED curing machine offers all the benefits of LED light-curing technology, including high UV intensity, low power consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
