UV LED Area Curing System 20x20mm Series

Model: UVSS-16D2: Various Sizes

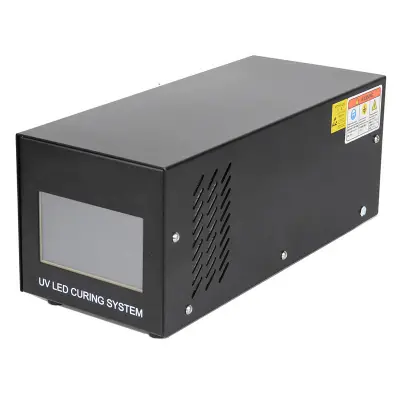

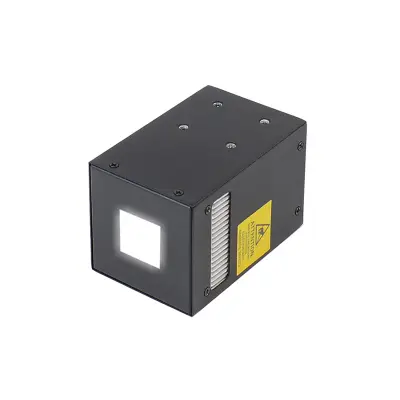

UVET company’s fan-cooled UV LED curing system comes with 20x20mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-16D2	Wavelength 365nm, Intensity 3500mW/cm²
Part No. UVSE-16D2	Wavelength 385nm, Intensity 4200mW/cm²
Part No. UVSN-16D2	Wavelength 395nm, Intensity 4200mW/cm²
Part No. UVSZ-16D2	Wavelength 405nm, Intensity 4200mW/cm²
Irradiation Area	20x20mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s fan-cooled UV LED curing system comes with 20x20mm irradiation area. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, optoelectronics industry, and so on.

This UV LED Curing machine offers all the benefits of LED light-curing technology, including high-intensity, less energy consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
