UV LED Area Curing System 250x250mm Series

Model: UVSS-500L: Various Sizes

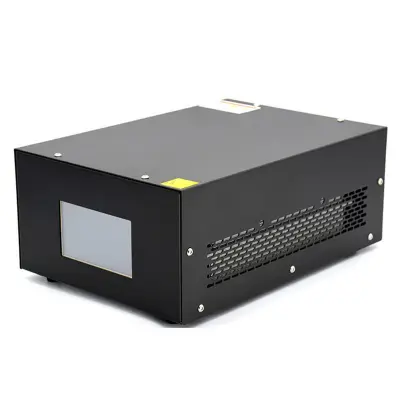

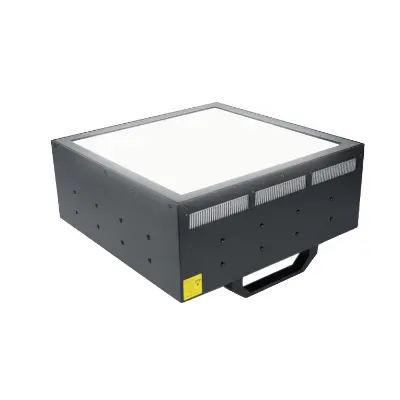

UVET company’s fan-cooled UV LED curing system comes with 260x260mm irradiation area and 1500mW/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, opto-electronics industry, and so on.

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UVSS-500Y	Wavelength 365nm, Intensity 1500mW/cm²
Part No. UVSE-500Y	Wavelength 385nm, Intensity 1800mW/cm²
Part No. UVSN-500Y	Wavelength 395nm, Intensity 1800mW/cm²
Part No. UVSZ-500Y	Wavelength 405nm, Intensity 1800mW/cm²
Irradiation Area	250×250mm
Heat Dissipation	Fan cooling

Descriptions

Descriptions

UVET company’s fan-cooled UV LED curing system comes with 260x260mm irradiation area and 1500mW/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It is ideal for electronic assembly, medical device bonding, optics bonding, opto-electronics industry, and so on.

This UV LED Curing machine offers all the benefits of LED light-curing technology, including high-intensity, less energy consumption, instant on/off, and low curing temperature. Additionally, it is simple to operate and can be used as a stand-alone system or easily integrated into automated assembly systems.
