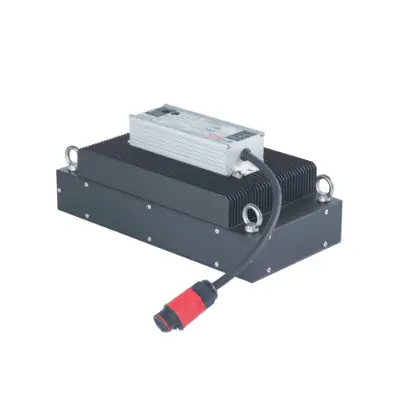

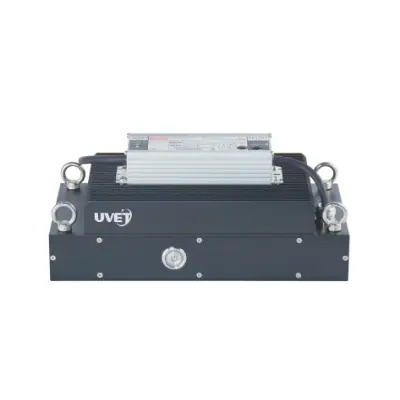

UV LED Floodlight

Model: UV500H
Various Sizes

The UV500H UV LED Floodlight is designed with 6 high‑power UV LEDs to deliver a perfectly uniform beam. Engineered for precision and reliability, it is 100% free from UV‑B radiation and features a visible light filter to ensure minimal visible light emission. Fully compliant with ASTM UV‑A intensity and wavelength specifications, the UV500H UV LED Floodlight is ideal for liquid penetrant testing (LPT) and magnetic particle testing (MPT). Its robust mechanical cooling system ensures stable performance, while the IP65 rating provides dust protection and resistance to water jetting, making it suitable for demanding industrial environments.

Read More
UV LED Floodlight
UV LED Flood flam
UV LED Floodlight UV500H
prev
next
UV LED Floodlight
UV LED Flood flam
UV LED Floodlight UV500H
Request Quote

High Energy Density

Complete Certification

Multiple Application

Specifications

Part No. UV500H
LED Count 6 LEDs
UV Spectrum 100% UV-B free
Wavelength ASTM UV-A compliant
Beam Uniformity Even beam
IP Rating IP65
Cooling Mechanical
Installation Overhead or in-line
  • Descriptions
    xiajiantou

    Designed Specifically for Large Area Fluorescent Inspection!

    UV500H consists of 6 x UV LED, offering a very even beam. It is 100% free from UV-B and the LEDs emit almost no visible light due to a visible light filter. It is compliant with ASTM UV-A intensity and wavelength specifications for LPT and MPT. Owe to the mechanical cooling design, IP65 is approved for dust and water jetting proof.

    Features

    • High UV Intensity: Provides broad‑area, uniform UV illumination.
    • UV-A Inspection Spectrum: Designed to provide UV-A illumination for fluorescent penetrant and magnetic particle inspection.
    • Long Service Life: Operational lifespan of 20,000–30,000+ hours.
    • Instant On/Off: No warm‑up required, ensuring maximum efficiency.
    • Durable Construction: IP‑rated housing for dust and water resistance.
    • Advanced Cooling System: Air or mechanical cooling for stable operation.

    Advantages of UV LED Floodlight

    • Enhanced Inspection Efficiency: Wide-area UV-A coverage supports efficient inspection of larger components and workpieces.
    • Cost Savings: Energy‑efficient design lowers operating expenses.
    • Eco‑Friendly Technology: Mercury‑free and RoHS compliant.
    • Consistent Inspection Conditions: Stable UV-A illumination helps maintain reliable visibility of fluorescent indications.
    • Flexible Integration: Compact design allows easy installation in various systems.
    • Reliable in Demanding Environments: Resistant to dust, water, and heat buildup.

    These stationary UV-A light sources can be installed overhead or in-line, and multiple units can be arranged to cover larger inspection areas. They are suitable for NDT inspection booths, fluorescent penetrant testing, magnetic particle inspection, fluorescent particle screening, and wash station inspection.

  • Applications
    xiajiantou

    The UV LED Floodlight is a high‑performance ultraviolet lighting solution engineered to provide broad‑area, uniform UV illumination. Designed with advanced LED technology, it delivers powerful UV output with minimal heat generation, ensuring stable performance even in continuous operation.

    With options for wavelengths such as 365 nm, 385 nm, 395 nm, and 405 nm, UV LED floodlights are ideal for industrial curing, non‑destructive testing (NDT), surface treatment, quality inspection, and medical sterilization. Compared to traditional mercury lamps, they offer instant on/off capability, longer service life, higher energy efficiency, and eco‑friendly, mercury‑free operation.

    Applications of UV LED Floodlight

    The UV500H UV LED Floodlight is designed for wide-area fluorescence inspection in industrial non-destructive testing (NDT). Its six high-power UV LEDs provide uniform illumination, while the visible light filter helps reduce visible light interference during inspection.

    With a mechanically cooled design and IP65-rated housing, the UV500H supports fixed installation in demanding industrial inspection environments.

    • Fluorescent Penetrant Testing (FPI/LPT): Provides UV-A illumination to reveal fluorescent indications associated with surface-breaking defects.

    • Magnetic Particle Inspection (MPI/MPT): Supports the examination of ferromagnetic components using fluorescent magnetic particles.

    • Aerospace Component Inspection: Suitable for NDT inspection stations used to examine compatible aerospace parts and assemblies.

    • Automotive Quality Control: Provides fixed UV-A illumination for inspecting castings, forgings, and other components using fluorescent NDT methods.

    • Industrial Inspection Stations: Designed for overhead or in-line installation where broad, consistent UV-A coverage is required.

    The UV500H can be integrated into existing inspection booths or arranged with additional units to illuminate larger work areas. Its fixed-mounting design helps support consistent inspection conditions across repetitive testing operations.

  • FAQs
    xiajiantou

    Q1: What is the UV500H UV LED Floodlight used for?
    A: The UV500H is a stationary UV-A inspection lamp designed for fluorescent penetrant testing (FPI) and magnetic particle inspection (MPI). It delivers uniform UV-A illumination over large inspection areas to support industrial non-destructive testing.

    Q2: What wavelength does the UV500H operate at?

    A: The UV500H is designed for UV-A fluorescence inspection. Its UV output is specified for NDT applications, and detailed wavelength and irradiance information can be confirmed through the product technical documentation.

    Q3: Where can the UV500H be installed?

    A: The UV500H supports overhead or in-line installation in NDT inspection booths, industrial workstations, and production-line inspection areas. Multiple units may be arranged to provide broader illumination coverage.

    Q4: How long is the operational lifespan of a UV LED Floodlight?

    A: Depending on operating conditions and cooling systems, most UV LED Floodlights provide 20,000 to 30,000+ hours of stable performance.

    Q5: How does a UV LED Floodlight compare to traditional mercury UV lamps?

    A: UV LED Floodlights offer instant on/off switching, higher energy efficiency, longer service life, lower heat emission, and mercury‑free eco‑friendly operation, making them a superior alternative.

    Q6: What safety precautions are required when using the UV500H?

    A: Operators should follow applicable UV-A inspection safety procedures, use appropriate eye and skin protection, and avoid unnecessary direct exposure to the light source. Installation and operation should comply with the relevant inspection and workplace safety requirements.

    Q7: Do UV LED Floodlights require cooling?

    A: Yes. Depending on the model, they may use air cooling or mechanical cooling systems to ensure consistent performance and extended service life.
