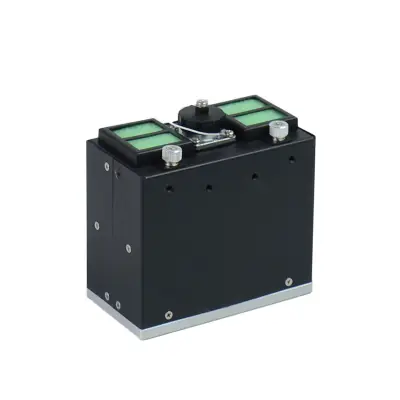

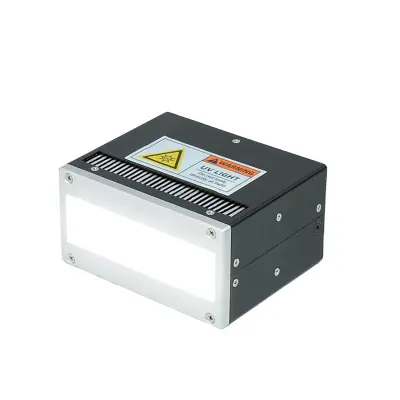

UV LED Curing Lamp 95x20mm Inkjet Printing Series
- Model: UVSN-3N2
- Various Sizes
UVET company’s 95x20mm series UV LED lamps provide up to 12W/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.
Specifications
| Part No. UVSS-3N2 | Wavelength 365nm, Intensity 8W/cm2 |
| Part No. UVSE-3N2 | Wavelength 385nm, Intensity 12W/cm2 |
| Part No. UVSN-3N2 | Wavelength 395nm, Intensity 12W/cm2 |
| Part No. UVSZ-3N2 | Wavelength 405nm, Intensity 12W/cm2 |
| Irradiation Area | 95x20mm |
| Heat Dissipation | Fan cooling |
-
Descriptions
UVET company’s 95x20mm series UV LED lamps provide up to 12W/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for flatbed inkjet printing systems with fast, efficient and energy-saving features.
It’s ideal for small and wide format inkjet printers, digital printers, screen printers, 3D printing, and others. The output UV power can be adjustable. It is easy to operate and integrate into UV LED printing systems.
