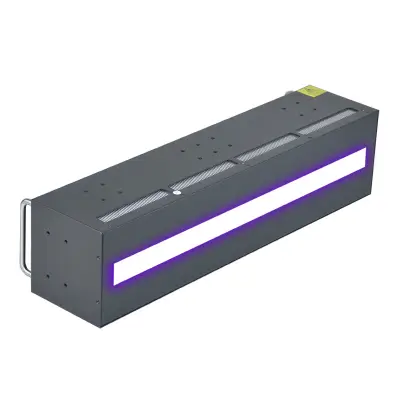

UV LED Curing Lamp 500x20mm Printing Series
- Model: UVSN-600P4
- Various Sizes
UVET company’s 500x20mm series UV LED lamps provide up to 16W/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for various UV printing systems with fast, efficient and energy-saving features.
Specifications
| Part No. UVSS-600P4 | Wavelength 365nm, Intensity 12W/cm2 |
| Part No. UVSE-600P4 | Wavelength 385nm, Intensity 16W/cm2 |
| Part No. UVSN-600P4 | Wavelength 395nm, Intensity 16W/cm2 |
| Part No. UVSZ-600P4 | Wavelength 405nm, Intensity 16W/cm2 |
| Irradiation Area | 500x20mm |
| Heat Dissipation | Fan cooling |
-
Descriptions
UVET company’s 500x20mm series UV LED lamps provide up to 16W/cm2 UV intensity. The optional wavelengths include 365nm, 385nm, 395nm and 405nm. It provides curing solutions for various UV printing systems with fast, efficient and energy-saving features.
It’s ideal for UV inkjet printing, digital printing, screen printing, 3D printing and others. The irradiation time and UV intensity can be independently adjustable. It is easy to operate and integrate into UV LED printing systems.
