Smart UV LED Curing for Every Surface
Full Area, Full Power — Instantly Cured
The ‘UV LED Area curing System’ offers a powerful solution for wide area ultraviolet curing of UV exposed materials. It offers high accuracy focusable LED technology which yields high intensity UV radiation over a broad surface area which is preferred in complex production lines and accurate fabrication processes.
Large-Area, Uniform Curing for High Efficiency
Utilizing the system’s linear and dense arrays of LEDs guarantees thorough and homogenous exposure to high intensity UV light over large surfaces and makes it effective for batch processing. The system is excellent for flat panel coating and optical film bonding enabling full area one pass curing quickly and efficiently.
Instant On with No Warm-Up Time
With the use of LEDs, warm delays, thermal inertia and start/stop delays is unencountered which is beneficial for automated lines and operations with frequent on/off requirements.
Low Power Consumption, Long Lifespan, Maintenance-Free
Compared with traditional mercury lamps, using UV LEDs lowers energy consumption while extending the lifespan with more than 20,000 hours of use without replacing bulbs. Reduces operational costs and promotes go-green efforts while spending less time spent maintaining.
-

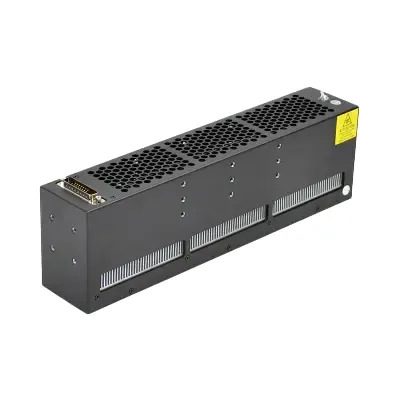

UV LED Flood Curing Light- Irradiation Area: 280x30mm
- Intensity: 2500mW/c㎡ @365nm
- 3000mW/c㎡ @385/395/405nm
Learn More -

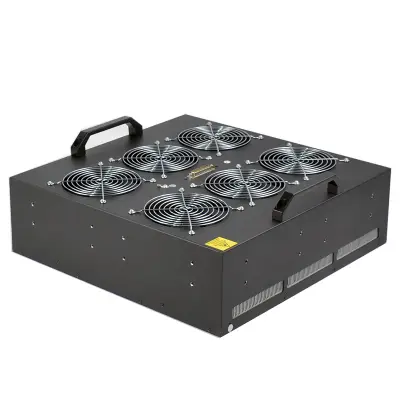

UV LED Flood Curing Unit
- Irradiation Area: 300x300mm
- Intensity: 1500mW/c㎡ @365nm
- 1800mW/c㎡ @385/395/405nm
Learn More -

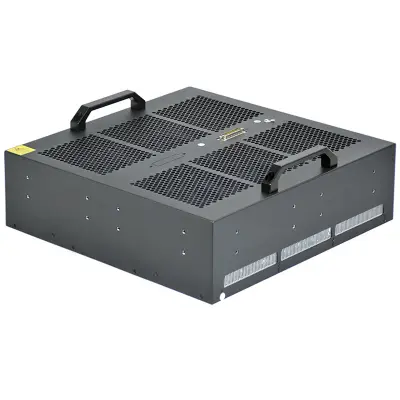

UV LED Flood Curing Equipment
- Water Cooling
- Irradiation Area: 300x300mm
- Intensity: 2500mW/c㎡ @365nm
- 3000mW/c㎡ @385/395/405nm
Learn More -

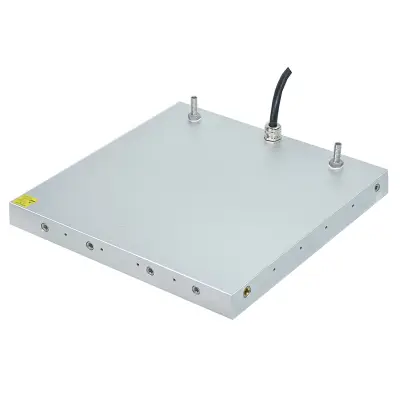

UV LED Flood Curing Panel
- Irradiation Area: 350x350mm
- Intensity: 750mW/c㎡ @365nm
- 900mW/c㎡ @385/395/405nm
Learn More -

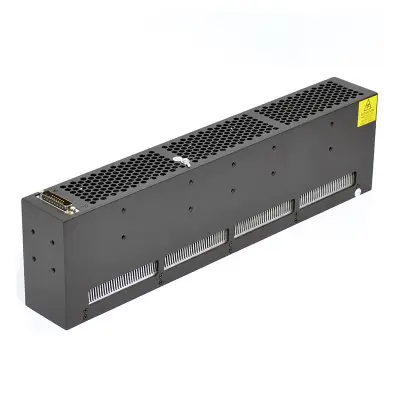

UV LED Flood Curing Solution
- Irradiation Area: 380x30mm
- Intensity: 2500mW/c㎡ @365nm
- 3000mW/c㎡ @385/395/405nm
Learn More
(1).png)
Key Features of Our UV LED Area Curing
-
as 50×50mm, 100×100mm
-
Available in 365nm, 385nm, 395nm
-
LED Lifespan:≥20,000 hours
-
AC 110–240V, 50/60Hz
Let us partner with you to create solutions that drive innovation, efficiency and success in your industry!
Technical Specifications (Sample):
| Specification | Detail |
|---|---|
| Curing Area | 50×50mm / 100×100mm / Customizable |
| Wavelength Options | 365nm / 385nm / 395nm / 405nm |
| UV Intensity | Up to 3000 mW/cm² (model-dependent) |
| Cooling Method | Air or water cooling |
| Control Modes | Manual / External trigger / PLC-compatible |
| Power Input | AC 110–240V, 50/60Hz |
| LED Lifespan | ≥20,000 hours |
| Housing Material | Aluminum alloy, industrial-grade |
UV LED Area Curing – FAQ
1. Q: How do I choose the correct wavelength?
A: Different adhesives, inks, and coatings formulated for UV curing respond optimally to specific wavelengths:
-
Deep curing 365nm
-
General-purpose applications 385nm / 395nm
-
Fast surface curing 405nm
Please check the manufacturer’s datasheet for optimal selection.
2. Q: Is it possible to customize the curing area?
A: Certainly. Depending on the customer’s product and production needs, the system can be tailored to different curing area sizes such as 50×50mm, 100×100mm, or 200×200mm.
3. Q: How long do UV LEDs usually last?
A: Compared to traditional mercury lamps, the LED modules outlive them by offering over 20,000 hours of usage, in addition to providing better reliability and requiring minimal upkeep.
4. Q: Can the System be used with Automated Systems?
A: Certainly. The greater part of area uv led curing systems accept PLC interface and external trigger options, which facilitates their use into automated production lines or robotics.
5. Q: What is the suggested safety concern, if any, for use of UV LED systems?
A: Compared to mercury lamps, UV LED’s pose a lesser threat, however, as with all sources of UV radiation, there are risks to eyesight and skin.
Avoid looking directly at the light source and use UV-filtering protective glasses.
