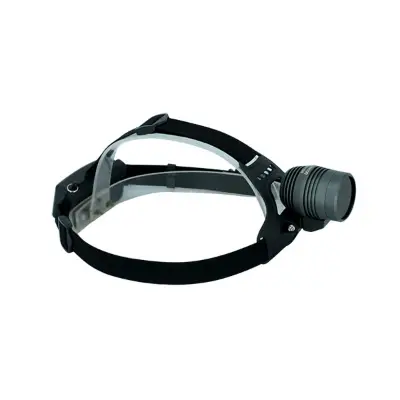

UV LED Headlamps - Hands-Free UV. Full Control
Our UV LED headlamps free up your hands while delivering powerful, focused UV light—ideal for inspections, leak detection, and precision repairs in tight or dark environments.
The UV LED Headlamps’s hands-free design works as a shotgun-type UV source. High-density UV LED chips set to 365 and 395 nm capable of exposing cracks, stains, or fluorescent markings make it ideal for non-destructive testing, HVAC leak detection, forensic analysis, and mineral hunting. Fluorescent detection features make it safe and effective to use in dark or tight spaces. With adjustable straps and multiple light modes, IT professionals and hobbyists will appreciate its portability, comfort, and functionality.
Hands-Free Operation for Greater Efficiency
Wearable design keeps both hands free, enabling easier inspection, repair, and handling in dark, confined, or precision-required environments.
Powerful and Focused UV Illumination
High-intensity UV LEDs deliver stable, targeted light—perfect for fluorescence detection, leak inspection, surface analysis, and spot curing tasks.
Lightweight, Comfortable, and Long-Lasting
Ergonomically designed for extended wear without fatigue. Equipped with long-life or rechargeable batteries to support all-day use in industrial, lab, or field settings.
Technical Specifications
-
LED Type: High-brightness UV LED
-
Wavelength: 365nm or 395nm (optional)
-
Power Supply: Rechargeable lithium battery
-
Lamp Head Tilt: 0–90° adjustable
-
Material: ABS + aluminum alloy
-
Waterproof Rating: IPX4 or above
-
Runtime: Approx. 4–10 hours
Partner with us to develop UV LED Headlamp solutions that spark innovation, improve efficiency, and drive success in your industry
Key Features
- Ultra-compact Illumination: Stowable illumination provides excellent mobility as well as hands-free operation, critical during inspections.
- High Intensity UV LED: This device employs precision-engineered UV LED diodes optimized for detecting counterfeit goods and spotting lack of fluorescence.
- Multiple Wavelength Options: Comes in both 365nm and 395nm models for diverse inspection tasks.
- Adjustable Lighting Angle: Provides a wide variety of working conditions due to the light’s head tilting up to 90°.
- Lightweight and Comfortable: The product has an elastic headband, making it easy to wear during long usage periods.
Wide Range of Applications
- Examination of minerals, amber, and gemstones
- Detection of fluorophores and cleanliness evaluation
- Detection of urine from pets and oil stains
- Repair work and fishing or hiking during night time
✅ How to Choose the Right UV LED Headlamp
1. Select the Appropriate Wavelength
Emits true UV light with minimal visible glow and is best for professional uses like:
- Fluorescent penetrant/magnetic particle inspection (NDT)
- Leak detection (HVAC, automotive)
- Forensics or mineral identification
395 nm – Emits more visible purple light, best for general use such as pet stain and scorpion detection
Recommendation: Choose 365 nm for industry-grade precision fluorescence detection, or 395 nm for general use.
2. Inspecting UV Intensity and Beam Pattern
- Increased UV intensity improves the visibility of fluorescent materials
- Utilizing a wide beam is helpful for area inspections
- Sharp focus beam is ideal for detailed or close-up work
- Outputs are measured in μW/cm² at defined distances (most favorable at 15 inches)
3. Power Source and Battery Life
- Long-lasting and powerful: Rechargeable Li-ion Batteries (18650)
- Convenient recharging on-the-go: Micro-USB and USB-C ports
- Timed usage indicators assist in managing power during extended use
4. Fit and Comfort
- Lightweight designs improve wear time
- Adjustable straps for strap tension, breathability, and comfort
- Balanced weight distribution—especially models with rear battery packs
- Tiltable lamp heads permit accurate angling to light specific areas
5. Weather Resistance and Durability
- Look for IP65 or higher rating for dust or water resistance
- Shock-resistant housing for outdoor and industrial use
6. Other Features to Keep in Mind
- White light mode for general lighting
- Motion sensor switches for hands-free operation
- Strobe modes and brightness levels for flexibility
- Contrast-enhancing filters built in to block visible light
🧪 Summary Checklist
| Feature | Recommendation |
|---|---|
| Wavelength | 365 nm for professional use; 395 nm for general |
| UV Intensity | ≥1,000 μW/cm² (depending on application) |
| Battery Type | Rechargeable Li-ion (preferably USB charging) |
| Fit & Comfort | Lightweight, adjustable, breathable straps |
| Durability | IP-rated, impact-resistant housing |
| Beam Type | Wide for coverage; focused for detail |
| Extra Functions | White light, tilt angle, motion sensor |
