UV LED Curing Lamp for Inkjet Printing Systems

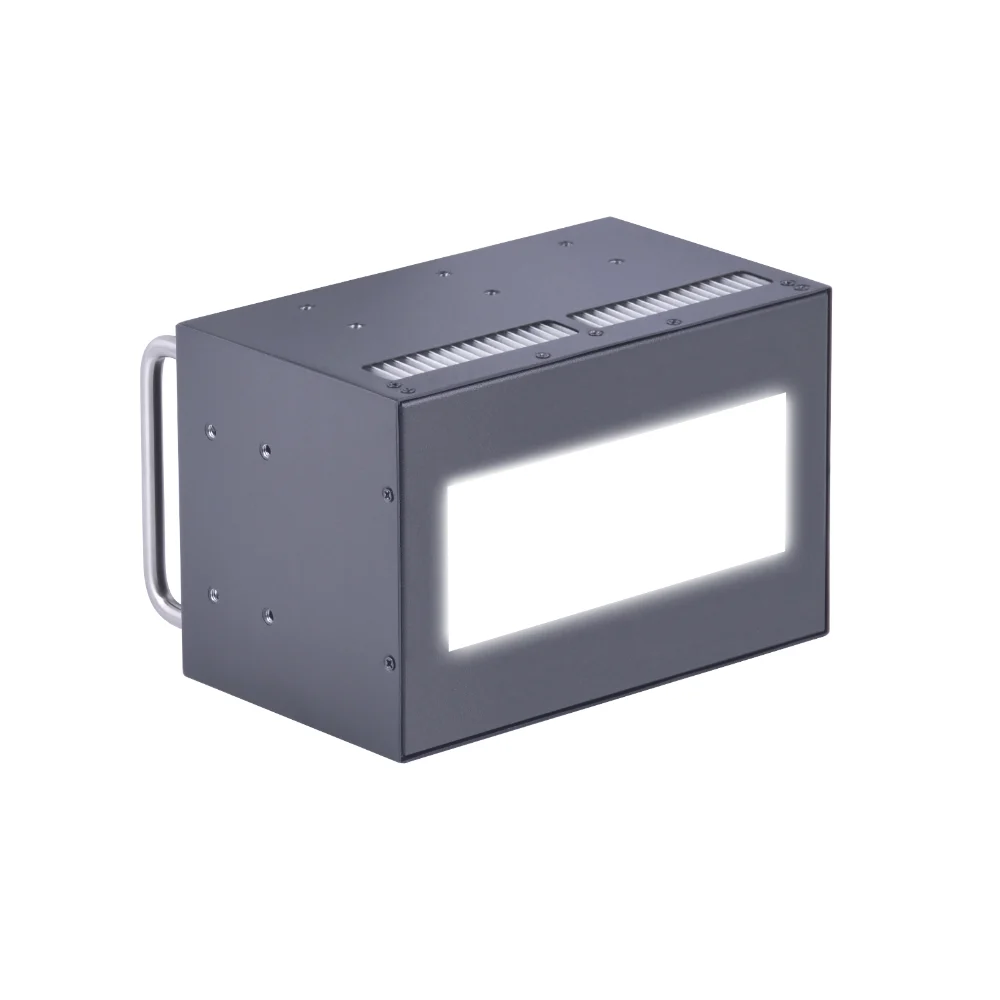

The 150×40mm 360-LED High-Power COB UV LED Module is designed for industrial UV curing applications requiring a wider irradiation area and high-intensity output. With a 150×40mm irradiation area, the module is available in 365nm, 385nm, 395nm, and 405nm wavelength options to support different UV-curable inks and materials.

Depending on the wavelength configuration, the module delivers an intensity of 10W/cm² at 365nm and 14W/cm² at 385nm, 395nm, and 405nm. Fan cooling supports heat dissipation during operation, making the module suitable for integration into UV curing equipment, particularly inkjet coding and printing systems.

Features

• Wide 150×40mm Irradiation Area: Provides broad UV coverage for curing larger printing and processing areas.
• Four UV Wavelength Options: Available in 365nm, 385nm, 395nm, and 405nm configurations for different UV-curable materials.
• High UV Intensity: Delivers 10W/cm² at 365nm and up to 14W/cm² at 385nm, 395nm, and 405nm.
• 360-LED High-Power Design: Integrates 360 LEDs to provide concentrated UV irradiation across the working area.
• Fan-Cooled Heat Dissipation: Active fan cooling helps manage operating heat during continuous UV curing processes.
• Multiple Part Number Options: Separate models are available for each wavelength, simplifying equipment specification and system matching.

Advantages of 150×40mm 360-LED COB UV LED Module

• Wide irradiation coverage for industrial curing
• Multiple wavelength configurations for different materials
• Up to 14W/cm² UV intensity
• Suitable for inkjet coding and printing applications
• Fan cooling supports thermal management
• Easy selection through wavelength-specific part numbers

Designed for Inkjet Coding & Printing

The 150×40mm 360-LED COB UV LED Module is particularly suitable for UV LED curing lamps used in inkjet coding and printing equipment. Its extended irradiation area allows UV energy to cover a wider working zone, supporting curing processes where printed inks need rapid exposure immediately after application.

Four wavelength configurations are available to match different curing requirements. The UVSS-360B1 operates at 365nm with an intensity of 10W/cm², while the UVSE-360B1, UVSN-360B1, and UVSZ-360B1 provide 14W/cm² at 385nm, 395nm, and 405nm respectively.

Fan cooling is used to dissipate heat generated during operation. This makes the module practical for integration into industrial UV curing assemblies where stable thermal management is required during repeated or continuous production.

With its 150×40mm irradiation area, four selectable wavelengths, high UV intensity, and fan-cooled configuration, this 360-LED module provides a flexible UV light source for inkjet coding, UV printing, and other industrial curing applications. Its integration-friendly design simplifies engineering work and supports faster implementation in UV curing and precision equipment.

The 150×40mm 360-LED High-Power COB UV LED Module is designed for industrial UV curing applications that require broad irradiation coverage and high-intensity output. With a 150×40mm irradiation area, the module is available in four wavelength configurations: 365nm, 385nm, 395nm and 405nm. It delivers an intensity of 10W/cm² at 365nm and 14W/cm² at 385nm, 395nm and 405nm, making it suitable for inkjet coding, UV printing and other continuous curing processes.

Typical Applications

• Inkjet Coding Printing: UV curing for coding, marking and variable-data printing processes
• UV Ink Curing: Rapid curing of compatible UV inks after printing
• Industrial Printing Equipment: Integration into UV LED printing and curing systems
• Label & Packaging Printing: Suitable for UV curing processes used in packaging production
• Coating Curing: Broad-area irradiation for compatible UV-curable coatings
• OEM UV Equipment: Multiple wavelength options for customized industrial curing systems

A major advantage of this UV LED module is its 150×40mm irradiation area, which provides broader curing coverage than compact point or small-area UV sources. This makes it particularly useful in printing equipment where the UV source needs to illuminate a wider section of the printed surface as it moves through the production process.

The module is available in four wavelength-specific versions. The UVSS-360B1 provides 365nm UV output at 10W/cm², while the UVSE-360B1, UVSN-360B1 and UVSZ-360B1 operate at 385nm, 395nm and 405nm respectively, each providing an intensity of 14W/cm². These options allow equipment manufacturers to select a wavelength according to the UV-curable ink, coating or process being used.

For thermal management, the module uses fan cooling to dissipate heat generated during operation. Active cooling is especially useful in repeated or continuous curing applications, helping maintain suitable operating conditions within industrial printing and UV curing equipment.

With its 360-LED configuration, 150×40mm irradiation area, four selectable wavelengths and up to 14W/cm² intensity, this module provides a practical UV light source for inkjet coding printers, UV printing machines and customized industrial curing systems.

1. What is the 150×40mm 360-LED COB UV LED Module used for?

It is designed for industrial UV curing applications such as inkjet coding, UV printing, coating curing and customized UV curing equipment.

2. What wavelength options are available?

The module is available in 365nm, 385nm, 395nm and 405nm versions, allowing users to select the wavelength that matches their UV-curable material or process.

3. What is the UV intensity of this module?

The 365nm version provides 10W/cm², while the 385nm, 395nm and 405nm versions provide 14W/cm².

4. What is the irradiation area?

The module provides a 150×40mm irradiation area, making it suitable for applications that require wider UV coverage than small spot curing sources.

5. How is heat dissipated during operation?

The module uses fan cooling to remove operating heat and support stable performance during repeated or continuous industrial curing processes.

6. Which model number corresponds to each wavelength?

UVSS-360B1 is 365nm, UVSE-360B1 is 385nm, UVSN-360B1 is 395nm, and UVSZ-360B1 is 405nm.
