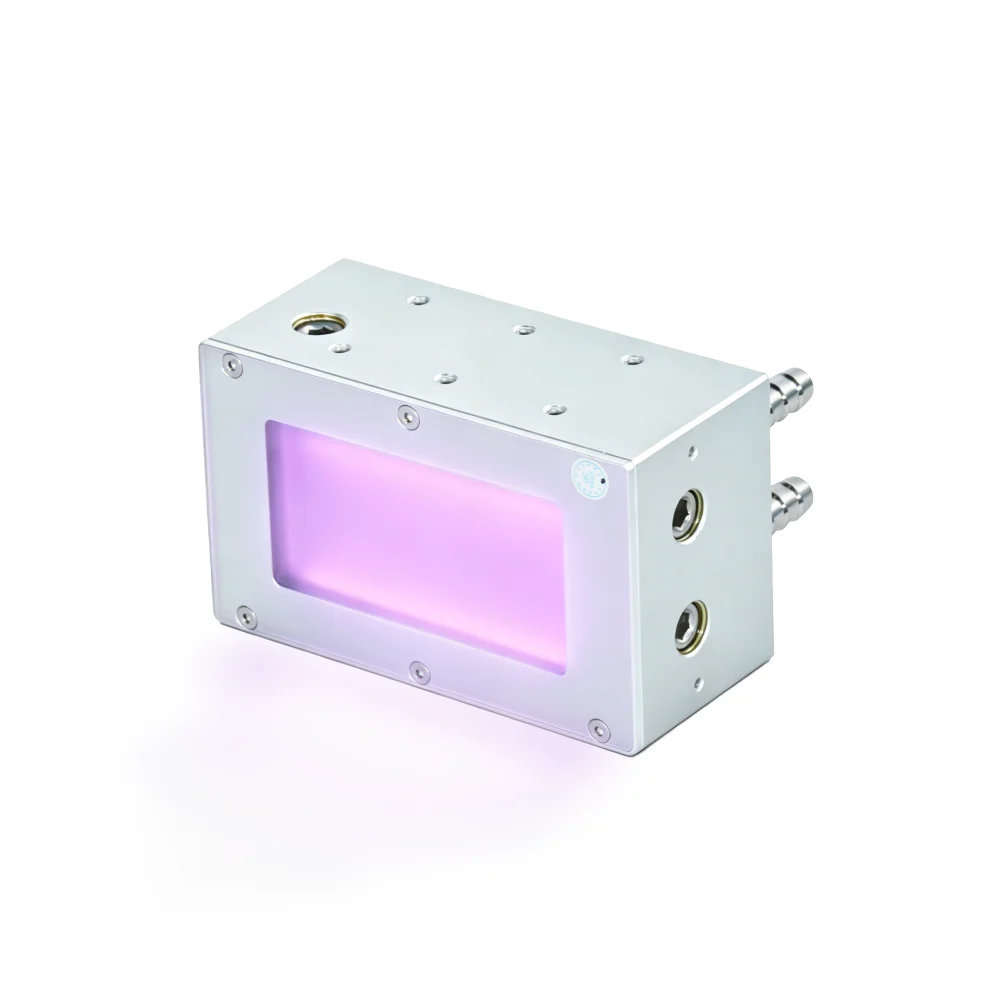

UV LED Inkjet Curing Lamp

The UV LED Inkjet Curing Lamp is designed for fast and stable curing in industrial coding and printing environments. With an 80 × 40mm irradiation area, the 200V4 series provides concentrated UV energy for curing compatible UV inks immediately after printing. Its compact lamp head makes it suitable for installation in inkjet coding equipment, digital printing systems, and automated production lines.

The system supports four wavelength options—365nm, 385nm, 395nm, and 405nm—to accommodate different UV-curable ink formulations and photoinitiator systems. The 365nm UVSS-200V4 delivers 15W/cm², while the 385nm, 395nm, and 405nm versions provide up to 20W/cm² for applications requiring higher UV intensity.

Its water-cooled structure provides effective thermal management during extended operation. Compared with compact fan-cooled curing lamps, water cooling is well suited to high-output applications where consistent temperature control is important for continuous industrial production.

Features

• High UV Intensity: Delivers 15W/cm² at 365nm and up to 20W/cm² at 385nm, 395nm, and 405nm for efficient UV ink curing.
• 80 × 40mm Irradiation Area: Provides concentrated curing coverage suitable for industrial inkjet coding and printing equipment.
• Four Wavelength Options: Available in 365nm, 385nm, 395nm, and 405nm configurations for different UV-curable materials.
• Water-Cooled Heat Dissipation: Efficient cooling helps manage heat during continuous and high-output operation.
• Compact Lamp Head: Designed for integration into inkjet printers, coding machines, and customized UV curing equipment.
• Stable Curing Performance: Provides consistent UV energy for repeatable curing in automated production environments.

Advantages of UV LED Inkjet Curing Lamp

• Up to 20W/cm² high-intensity UV output
• 80 × 40mm practical curing area
• Four wavelength options from 365nm to 405nm
• Water cooling for efficient thermal management
• Suitable for continuous industrial printing
• Compact design for OEM equipment integration
• Designed for UV inkjet coding and printing applications

Designed for Industrial Inkjet Coding

The 200V4 series is designed for industrial printing processes where UV ink must be cured quickly after deposition. Its 80 × 40mm irradiation area provides focused UV coverage for coding and marking applications while remaining compact enough for integration into printing machinery.

Four wavelength-specific models allow equipment manufacturers to select the appropriate UV output according to the ink chemistry. The UVSS-200V4 operates at 365nm with 15W/cm² intensity, while the UVSE-200V4, UVSN-200V4, and UVSZ-200V4 deliver 20W/cm² at 385nm, 395nm, and 405nm respectively.

The water-cooled lamp head is particularly suitable for production environments requiring extended operating periods. By removing heat from the LED assembly, the cooling system supports stable operating conditions and makes the lamp suitable for industrial inkjet coding machines, automated printing lines, and customized UV LED curing systems.ed by the flexibility you need in modern digital printing.

The UV LED Inkjet Curing Lamp is suitable for industrial printing processes that require fast UV ink curing, high UV intensity, and continuous operation. Its compact 80 × 40mm irradiation area and water-cooled design allow it to be integrated into various coding, marking, and printing systems.

Typical Applications

• Inkjet Coding: UV curing for batch numbers, dates, barcodes, serial numbers, and variable-data printing
• Industrial Inkjet Printing: Fast curing of compatible UV inks in production printing equipment
• Product Marking: UV curing for printed identification and marking on suitable industrial products
• Label Printing: Curing of UV inks used in compatible label and packaging printing processes
• Packaging Printing: Integration into industrial coding systems for packaging production lines
• Automated Printing Lines: Inline UV curing for continuous coding and printing processes

A key advantage of the 200V4 series is its combination of high UV intensity and compact irradiation area. The 80 × 40mm curing window provides effective coverage for industrial inkjet heads and coding applications without requiring an unnecessarily large UV source.

Its four wavelength configurations also provide flexibility when working with different UV-curable inks. Users can select 365nm, 385nm, 395nm, or 405nm according to the photoinitiator and curing requirements of the ink rather than using one wavelength for every printing process.

For continuous production, the water-cooled structure helps manage the heat generated by the high-power UV LED array. This makes the lamp suitable for OEM integration into industrial inkjet printers, coding machines, and automated UV ink curing systems where stable operation is required over longer production cycles.

Q1: What is the UV LED Inkjet Curing Lamp used for?

It is designed to cure compatible UV inks used in industrial inkjet coding, marking, and printing applications.

Q2: What is the irradiation area of the 200V4 series?

The lamp provides an 80 × 40mm irradiation area, suitable for compact industrial printing and coding systems.

Q3: What UV wavelengths are available?

The 200V4 series is available in 365nm, 385nm, 395nm, and 405nm wavelength versions.

Q4: What is the maximum UV intensity?

The 365nm model provides 15W/cm², while the 385nm, 395nm, and 405nm models provide up to 20W/cm².

Q5: Why does this UV LED curing lamp use water cooling?

Water cooling helps remove heat generated by the high-power LED array and supports stable operating conditions during continuous industrial production.

Q6: How do I select the correct wavelength for UV ink curing?

The wavelength should be selected according to the UV ink's photoinitiator system and the ink manufacturer's recommended curing range.
