What is LED UV Curing? Complete Guide with Pros, Process & Uses

A Brief Overview of LED Curing Technology

• The modern industries of manufacturing, printing, and electronics have started using LED UV curing systems. As the advanced integrated-circuit technology takes over, their systems of drying, hardening materials, or performing operations get upgraded. What is LED UV curing? Why has LED UV technology become more popular than traditional curing methods, and what purpose does it serve?
• UV LED Curing is the application of using Light Emitting Diodes to generate ultraviolet energy to cure photo-reactive materials. These materials include inks, coatings, adhesives, and other media that need light curing. This technological process has roots in photopolymer reaction, thus requiring chase materials that solidify after being subjected to the reactant UV light.
• The primary benefit of using LED UV technology over traditional mercury lamps is control. They also generate less heat, have a greater lifespan, and are environmentally friendly.

The Detailed Process of LED UV Curing

Like any other curing method, UV-led curing has its specific workflow, which can be simplified into basic steps.

• Source of LED lamp:

It contains a UV Lamp built specifically to provide the required UV light of 365 nm, 385 nm, 395 nm, or 405 nm.

• Activating Photo initiators:

In the case of ink, coating, or adhesive, Photo initiator ingredients absorb the energy from UV light.

• Polymerization Reaction:

Triggers during each step of the process start off a chain reaction, which in turn polymerizes the material.

• Curing Done:

The material turns solid in seconds without heat, evaporating, or needing any other measure for the delay.

Components of LED UV Curing

There are three main components to a UV LED curing system. Look at the primary elements involved here:

• Infrared LED Lamp: Creates particular Ultraviolet Frequencies for precise curing.
• Cooling System: Maintains a temperature range (air or water)
• Power Supply Unit: Regulates the level of output conductance (as W/cm²).
• Lens: Optical/Reflector – cuts

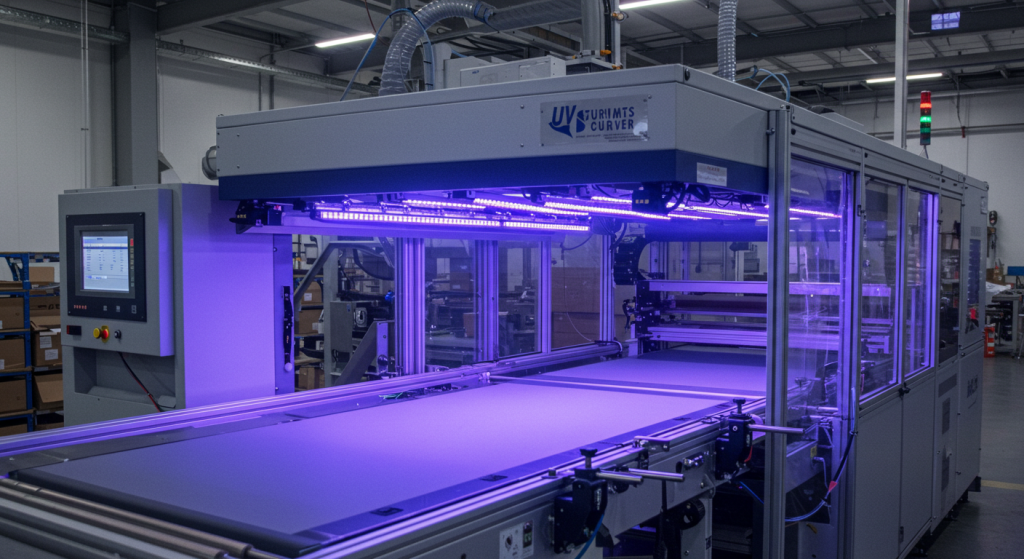

• Conveyor/Curing Chamber: For transport using industrial speeds

Why Go for LED UV Over Standard Methods of UV Curing?

What is LED UV curing? LED UV is quickly becoming the optimal standard in a wide range of fields, including printing, coatings, and electronics, and for good reason. When you contrast it with older mercury UV systems, LED systems have many eco-friendly advantages.

• To start, LED UV systems yield instant results with no warm-up gap when needed, whereas mercury UV lamps can take many minutes. This, in turn, increases the productivity rate whilst saving valuable set-up time.
• Secondly, energy saving is one of the most prominent advantages. LED systems use less power while attaining high-intensity curing, thus lowering your electricity expenses and carbon footprint. Furthermore, LED UV produces very little heat, which is best suited for sensitive materials like films, plastics, and labels.
• LED UV systems are mercury and ozone-free free which increases the safety of the workplace and lowers environmental risks. In contrast, traditional UV lamps emit ozone and contain mercury, so they must be specially treated and disposed of.
• The lamp life is also a breakthrough for LED UV, lasting over 20,000 hours as opposed to 1,000-2,000 for mercury UV. This translates to lower maintenance costs and reduced production downtimes.
• Overall, LED UV curing is in fact cleaner, cooler, and more cost-efficient, proving it to be the best option when it comes to today’s eco-conscious manufacturing world.

Advantages of LED UV Curing

Now let’s discuss the practical benefits:

1.      Faster Drying: Materials cure instantaneously, which increases line speed.

2.      Energy Saving: Up to 60% savings compared to mercury lamp usage.

3.      Lower Heat Output: Suitable for heat-sensitive substrates like thin films and plastics.

4.      Enhanced Print Quality: Curing sharply and precisely increases footage sharpness and gloss.

5.       Compact & Modular: These LED UV lamps can be installed easily, are small in size, and can be expanded easily.

6.       Improved Uptime: Less maintenance and no warm-up or cool-down periods,

7.       VOC Reduction: Better for operators and the environment.

Industries That Use LED UV Curing

Due to its versatility, LED UV curing is used across various industries:

• Printing

•          Digital Printing

•          Flexographic and Offset

•          Screen Printing UV LED

•          Packaging (Foil, Plastic, Paper)

• Adhesives & Coatings

•          Protective and top coats

•          Finishes for wood and decorative laminate

•          Industrial adhesive bonding

• Medical & Electronics

•          Coatings for medical devices

•          Conformal coatings for PCBs

•          Optical bonding of microelectronics

•          Microelectronics sealing

• 3D Printing

•          Photopolymer-based 3D printer, LED UV curing

•          Stronger and more durable prints without delay post-curing

How to Pick the Proper UV LED Curing Equipment?

To maintain optimal performance, efficiency of production, and curing consistency, the right UV LED curing system must be selected with care. Consider the following factors before making any purchases:

1. Curing Wavelengths

Various activators respond to different wavelengths. Most inks and adhesives respond to UV wavelengths 365nm, 385nm, 395nm, 405nm, and so on. Always check if the UV LED lamp’s wavelength and the material’s chemical formulation are compatible to enhance curing.

2. Output Power

Irradiance, defined in terms of output power (W/cm²) determines the material’s depth and speed of curing. Higher-power UV LED systems are essential to ensure faster polymerization with no slowing of thick coating and high-speed printing processes.

3. The Width of Curing

The curing scope must also be selected following the substrate width. Thin UV LED heads are suitable for label printers and electronic devices, while those utilized for industrial coating, banner printing, and sign writing require wide-format systems.

4. Required Cooling

Self-based applications or smaller ones may work best with air-cooled UV LED devices; however, systems with water cooling are recommended in high-intensity or continuous pulse settings for prolonged lamp life and extended performance.

5. System Integration

Make certain that the curing unit can easily be fitted to your machine. Look for electrical, control system integration, and modular add-on steps for easy assembly.

Conclusion:

So, what is LED UV curing? It is more than a drying process; it is a smarter, greener, and quicker means of solidifying inks, adhesives, and coatings. In whichever field you are in, be it printing, electronics, medical devices, or even 3D manufacturing, you will note that UV LED technology is unparalleled in precision, efficiency, and sustainability. It’s instant results without mercury or waiting, only glowing quality and future performance. Visit UVET.
