Array UV LED Module: UV Curing Solutions for Industrial Applications

Manufacturing is moving faster than ever. Businesses require curing systems that are cost-effective, energy-saving, and that can provide a reliable outcome. It is at this point that an Array UV LED Module will be a game changer. UV LED technology is changing industrial processes, whether in electronics production and PCB assembly, printing, and adhesive bonding. Modern UV LED systems have an instant on/off operation, a narrow range of wavelengths, reduced energy usage, and extended life compared to traditional mercury lamps.

• A high-power UV LED array module integrates several high-power LED chips on a small platform to form a high-power source of ultraviolet light that can produce excellent curing performance. You may require a UV LED curing module to cure the coating or a UV LED module to print; these systems offer the accuracy needed in the current production-intensive environments.
• For companies needing the latest UV curing technologies, UVET has a variety of solutions, such as specialized UV LED modules and COB technologies that can be used in industry.

What is an Array UV LED Module?

An Array UV LED Module is a small unit that incorporates several UV LED chips into one platform. The module employs a well-designed UV LED chip array to produce increased irradiance and more uniform UV distribution, instead of a single emitter. The design usually incorporates:

• Several UV LED emitters.

• Precision optical lenses

• Thermal management systems

• Metal-core circuit boards

• Customized wavelength configurations

This design is what makes the module a very effective UV LED light engine that can be used to power industrial-level curing processes. These designs enable manufacturers to adjust UV output to the needs of the application.

Why Industrial Manufacturers are moving to UV LED Technology

Conventional UV lamps have been used by industries over the decades, and they have drawbacks like excessive heat production, mercury, and long start-up time. The modern industrial UV LED modules address these issues with the help of the latest semiconductor technology.

Key benefits include:

• Instant ON/OFF operation

• Stable UV intensity

• Reduced energy consumption

• Lower maintenance requirements

• Mercury-free operation

• Compact system integration

• Longer operational lifespan

Most UV LED modules have reached over 20,000 to 30,000 operating hours with adequate cooling.

Powerful UV LED Modules Provide Increased Productivity

Manufacturers today require speed without compromising on quality. High-power UV LED modules offer the irradiance required to cure at a high rate and still show constant performance throughout the curing surface.

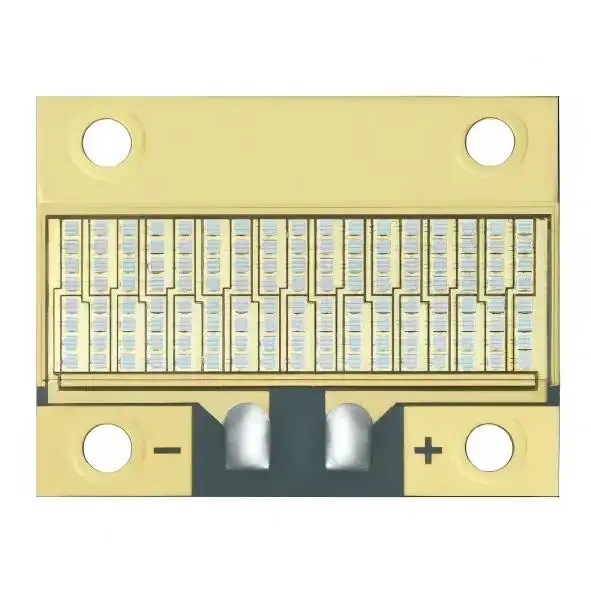

To illustrate, the COB UV technology of UVET incorporates up to 136 high-power UV-A chips into a small package, producing high UV output and high thermal performance. The system has a peak wavelength of 365nm and it uses advanced metal-core PCB technology for heat dissipation.

This design creates:

• Faster curing cycles

• Increased production throughput

• Better curing consistency

• Reduced process variation

Uses in a variety of industries

The flexibility of a multi-array UV LED system can be useful in many industries.

UV Curing Module in Adhesives

To ensure that the adhesive bonds well within a short period of time without overheating, adhesive manufacturers use a UV LED array module to cure the adhesive.

Electronic UV LED Module

Assemblies in electronics need accurate curing. An electronics-specific UV LED module assists in curing conformal coatings, encapsulates, and adhesives and safeguarding delicate components.

PCB UV Curing Module

A PCB UV curing module is used to aid the manufacture of printed circuit boards by curing the intricate surfaces of boards evenly.

Printing UV LED Module

A UV LED module is used in printing companies to cure the ink to enhance the durability of the prints, speed up the printing process, and shorten the drying time.

Coatings UV Curing Module

Coatings used in industries need regular exposure to ultraviolet energy. The strong UV-A curing unit provides high-quality and long-lasting finishes.

High-level COB Technology Improves Performance

Chip-on-Board (COB) integration is one of the most thrilling innovations in UV curing technology. A COB system is an assembly that integrates several LED chips on a single substrate, resulting in:

• Higher power density

• Improved irradiance uniformity

• Better thermal performance

• Compact system size

The COB UV modules of UVET use up to 136 high-power chips in a small footprint and have wavelengths of 365nm, 385nm, 395nm and 405nm. The design makes it easy to integrate into an industrial UV curing system and provides outstanding curing efficiency.

How to select the appropriate UV LED Module Manufacturer

It is equally important to choose the appropriate manufacturer of UV LED modules as it is to choose the technology. Find a company that provides:

• Custom engineering support

• OEM production capabilities

• Reliable quality control

• Wavelength customization

• Thermal design expertise

• Industrial certifications

A skilled supplier of UV LED modules can supply a custom UV LED module, OEM UV LED module, or an entire UV LED integration module tailored to your production needs. You may require a high-power 4-array UV LED curing module, a 395nm 4-array UV LED curing system, or a UV LED module to use in automated production lines, but by collaborating with a reliable UV LED assembly manufacturer, you are guaranteed success in the long run.

Conclusion

Curing of the future lies in smart, energy-saving systems that can provide precision without compromise. An Array UV LED Module offers quicker curing, reduced operating expenses, and excellent reliability in electronics, printing, coatings, adhesives, and sophisticated manufacturing applications.

If you're ready to upgrade your UV curing process, partner with UVET, a trusted provider of industrial UV solutions. Discover new UV LED technology, tailor-made curing systems, and high-performance COB modules that are aimed at maximizing productivity and providing uniform results in each production cycle.
