Flexographic UV Curing | Advanced UV LED Solutions for Printing

Flexographic UV curing refers to the process of curing and hardening inks immediately in flexographic printing with the help of ultraviolet (UV) light. In comparison to the traditional solvent-based drying, UV curing provides a quick UV ink curing for flexography and guarantees a short downtime and low-energy use. This process is based on photopolymer curing, in which UV-sensitive inks are reacted under UV wavelengths to create a hard, glossy finish on paper, film, or cardboard.

The main benefits of Flexo UV Curing Systems are:

Quick-drying flexographic inks.
Uniform color reproduction.
Less environmental impact due to low-energy processes.
Ability to be used with multiple substrates, such as plastic, coated paperboard, and films.

Flexographic UV Curing: Changing the Efficiency and Quality of Printing

Flexographic UV curing is a novel technology in contemporary printing, which provides unparalleled accuracy, speed, and sustainability. With the growing need of industries to produce finer and more quality products at a faster rate, it has become important to learn the finer details of the flexographic UV printing. This guide discusses it all, including the technology behind it and the current novelties, such as the advanced COB LED UV solutions at UV NDT.

The knowledge of Flexo UV Curing Systems

In a contemporary flexo UV curing system, high-intensity UV lamps or LEDs are combined with a printing press. Some of the most developed solutions include COB LED UV modules, like the COB LED UV Solution of UV NDT. These systems incorporate several high-power LED chips attached to one substrate to achieve consistency in light production and better heat management.

COB LED UV Solutions characteristics:

Fast curing with high energy density.
Compact, space-saving design
High thermal control to ensure stability.
Environmentally friendly, mercury-free.
Above 20,000 hours of service life.

These solutions are very effective in improving efficiency in production, and high-quality printing standards are also maintained.

Flexography Role of UV LED Curing

The UV LED technology has revolutionized conventional UV curing. UV LED flexo systems offer better performance than mercury lamps by offering:

UV curing with low heat, which preserves heat-sensitive substrates.
Reduced energy consumption
On/off capability in an instant and with high precision.
Constant UV output to achieve uniform ink polymerization.

This renders them useful in high-speed applications such as industrial UV curing of adhesives, coatings, and inks.

Materials and Substrates that are compatible with Flexo UV Curing

The effectiveness of flexographic UV drying requires proper material and ink mix. Common substrates include:

Plastic films
Coated paperboard
Elastomeric packaging materials.
Corrugated boards

Also, the UV-curable inks and photopolymer plates are designed to respond effectively to UV-radiation to provide quick drying and crisp images.

Optimization of Flexographic UV Curing Process

The use of UV flexo printing technology defines its efficiency based on the following factors:

Formulation Ink: UV-curing inks are chosen to minimize exposure.
Intensity and wavelength: COB LED solutions have 365-405 nm control.
Speed of substrate: The high-speed presses need even light distribution.
Thermal control: Stops excessive heat and guarantees the system's reliability in the long term.

Use of low-energy UV-curing flexo systems enables companies to save on the costs of operation yet attain shorter drying time, which makes them very competitive.

Further Uses of Flexographic UV Curing

Flexo UV curing does not apply only to standard packaging. It is versatile and can be used in different industries:

Flexible Packaging Printing - Produces bright colors and finishes.
Label Printing UV Technology - Ink polymerization of labels in a short time.
Corrugated Board Flexo Printing - Provides uniform curing to large areas.
Automation in Industrial printing - Incorporates inline UV curing to reduce downtimes.

Furthermore, the controversy of the UV LED over the traditional UV curing in flexography is highly inclined towards the use of LED technology because of its energy efficiency, longer life, and less heat emission.

Combining COB LED UV Solutions to achieve Maximum Efficiency.

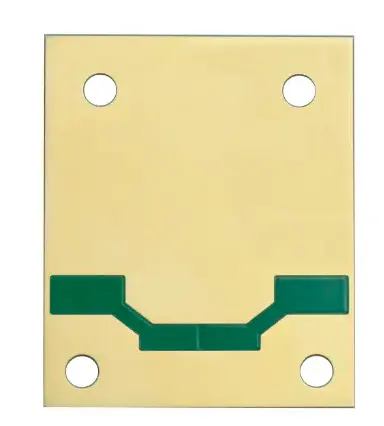

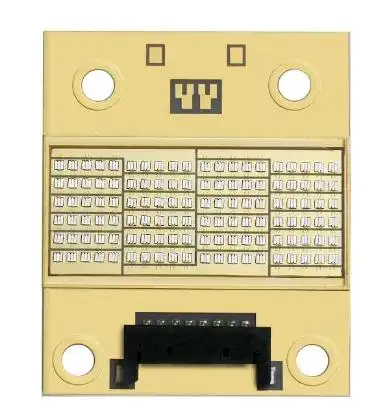

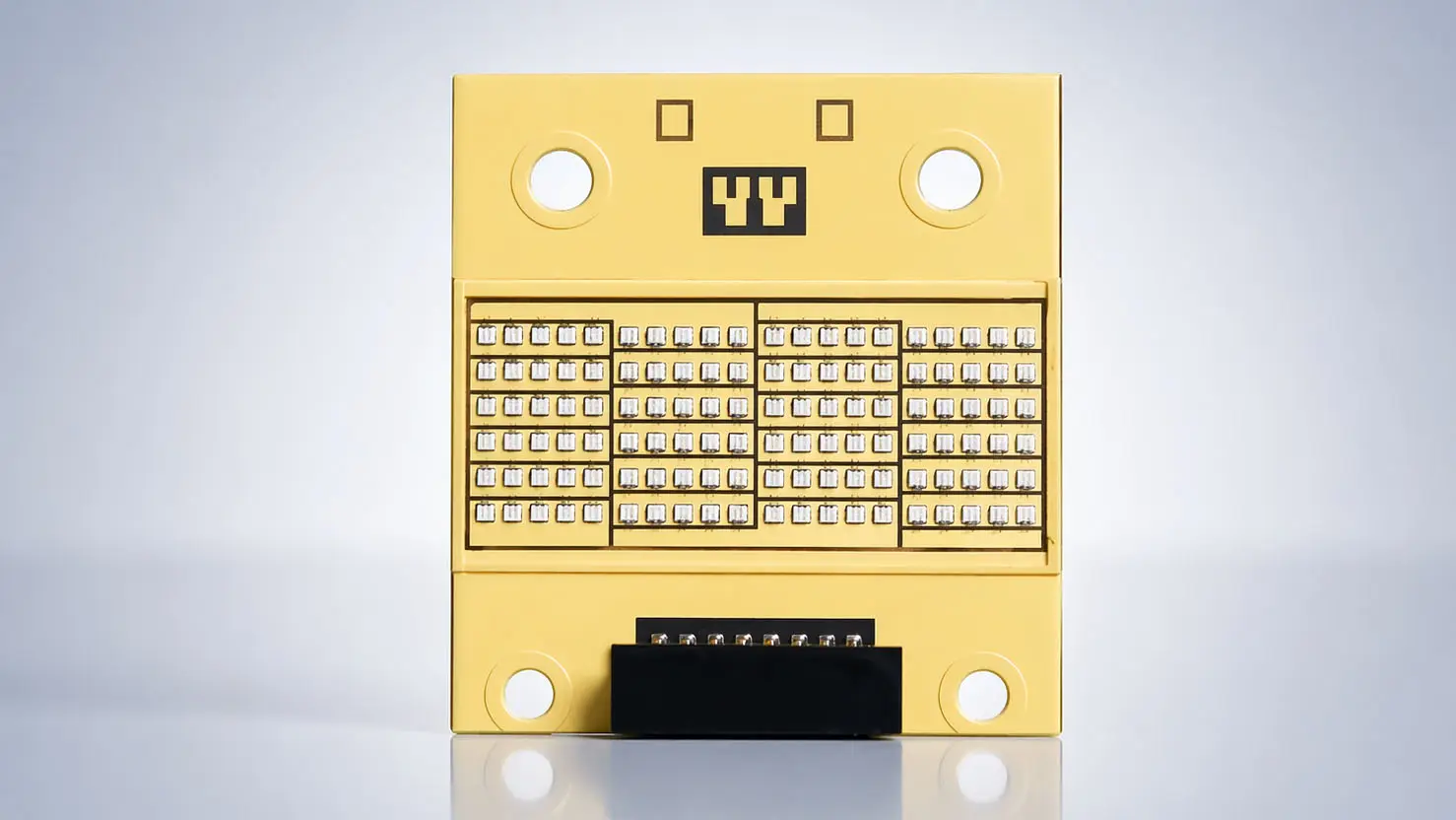

COB LED UV Solution is a case of state-of-the-art technology in flexographic printing UV systems. It is designed with 120 high-power LED chips on a small metal core printed circuit board, which provides:

Even UV intensity on the substrate.
Better thermal management to eliminate degradation.
Long service, even continuous industrial service.

With this kind of progressive UV curing equipment on flexo presses, printers are able to produce faster, reduce energy usage, and improve the quality of print.

Performance & Optimization Strategies

To achieve the maximum benefits of flexo UV curing, it is necessary to pay attention to the performance and sustainability:

Rapid flexographic curing Necessary in achieving a strict production timetable.
Quick ink drying: Enhances throughput and minimizes bottlenecks.
Stable color curing: Guarantees print quality in a series of runs.
Low energy use UV systems: Green and economical.

The addition of energy-efficient flexographic UV curing solutions will help businesses to address the current demands and remain sustainable in terms of operations.

Comparison of UV LED and Mercury Lamps

Although the industry has been using traditional mercury lamps for decades, the UV LED lamps are better in some aspects:

Instant start and stop capability.
Reduced working temperatures.
Long lifespan (20,000-30,000+ hours)
Mercury-free and environmentally safe.

These advantages render the use of advanced UV curing technology in flexo presses a viable option in the present-day print shops.

Key Takeaways for Printers

To those businesses that want to enhance flexographic UV printing:

Invest in good UV LED flexo systems.
Select compatible UV-curable inks and photopolymer plates.
Maximize the speed and exposure time of the press.
Look at high COB LED UV solutions to achieve uniform curing.

These strategies will guarantee improved quality of prints, improved production speed, and stability.

Conclusion

Flexographic UV curing is a pillar of contemporary printing, as it provides fast UV ink curing to flexography, high-quality images, and eco-friendly operations. Through the incorporation of state-of-the-art COB LED UV solutions of UVET, businesses are able to enjoy improved reliability, reduced operating expenses, and economical production. It is the next level of printing: this is where innovation and performance meet. Discover our innovative UV products and streamline your flexo printing process.
